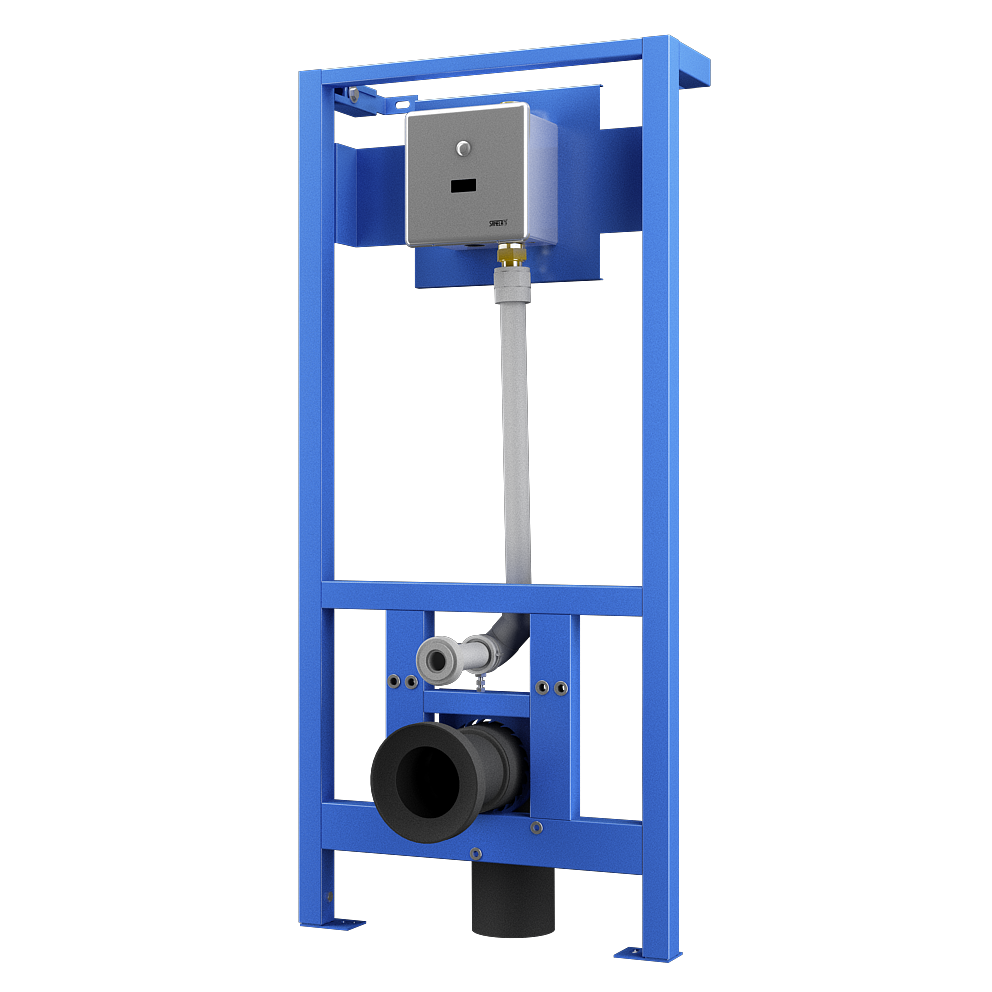

SLW 10NK

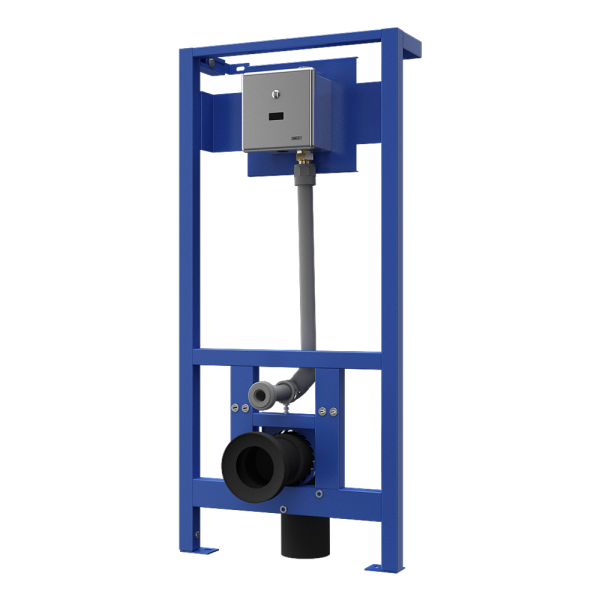

Set of SLW 01NK and SLR 03, 24 V DC
Characteristics
- including pre-installed mounting frame SLR 03
- is destined for the brick wall
- five-point system for fixing of stainless steel toilets
- metal frame construction with surface finishing - blue powder coated
- mounting screws M10, waste pipe holder with connecting set Ø 50 mm and waste pipe holder with the elbow pipe Ø 110 mm
- toilet flushing unit for a pressure water from water distribution, isn´t possible to use it for toilet with tank
- system reacts to the user attendance in active range of the sensor at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 s
- water flows after the user leaves active range
- adjustable flushing time from 0,5 to 15,5 s
- possibility of additional manual flush by push-button (f.e. during the cleaning)
- automatic hygiene flush after each 8 use of toilet and after 24 hours non-use
- parameters adjustment by remote control SLD 03
- Order number: 04101
I am interested in more information:
Supply specification
SLW 10NK - Supply No. 04101 - stainless steel cover with electronics, stainless steel mounting box with brass screw coupling and electromagnetic valve, inlet fitting with a rubber sealing, 4 pcs. AA alkaline batteries 1,5 V 2700 mAh (SLW 10NKB - Supply No. 04102), mounting frame SLR 03
Technical information
| Flushing type: | for a pressured water |
| Material: | stainless steel |
| Power supply: | 24V DC |
| Control: | infra-red |
| Stainless steel cover dimension: | 170 x 170 x 10 mm |
| Mounting box dimension: | 150 x 150 x 100 mm |
| Mounting frame dimensions: | 1120 - 1290 x 510 x 155 - 235 mm |
| Operating voltage: | 24 V DC |
| Power input: | 7 W |
| Active range: | 0,6 - 0,75 m |
| Recommended flow pressure: | 0,1 - 0,8 MPa |
| Rate of flow: | 70 l/min. by the pressure 0,15 MPa (inf. data) |
| Water inlet: | Ø min. 32 mm (PN 16) male thread G 1′′ |
| Water outlet: | male thread G 1“ |
Downloads
- Mounting instructions (7.65 MB)
- Catalogue list (163.6 kB)
- 2D Drawing (512.42 kB)
