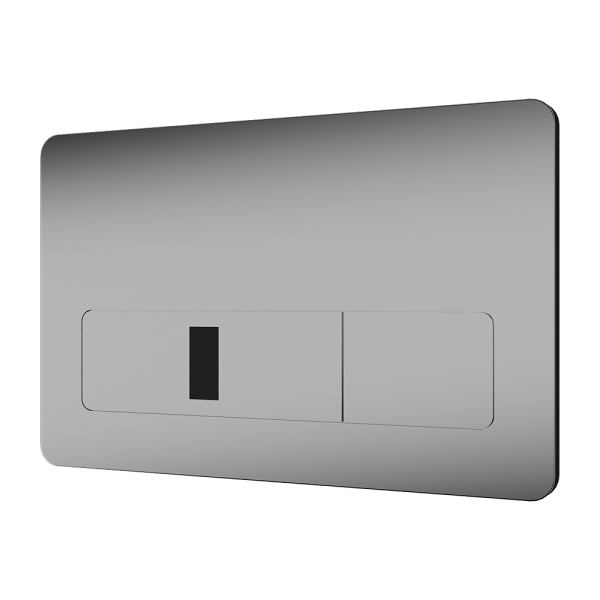

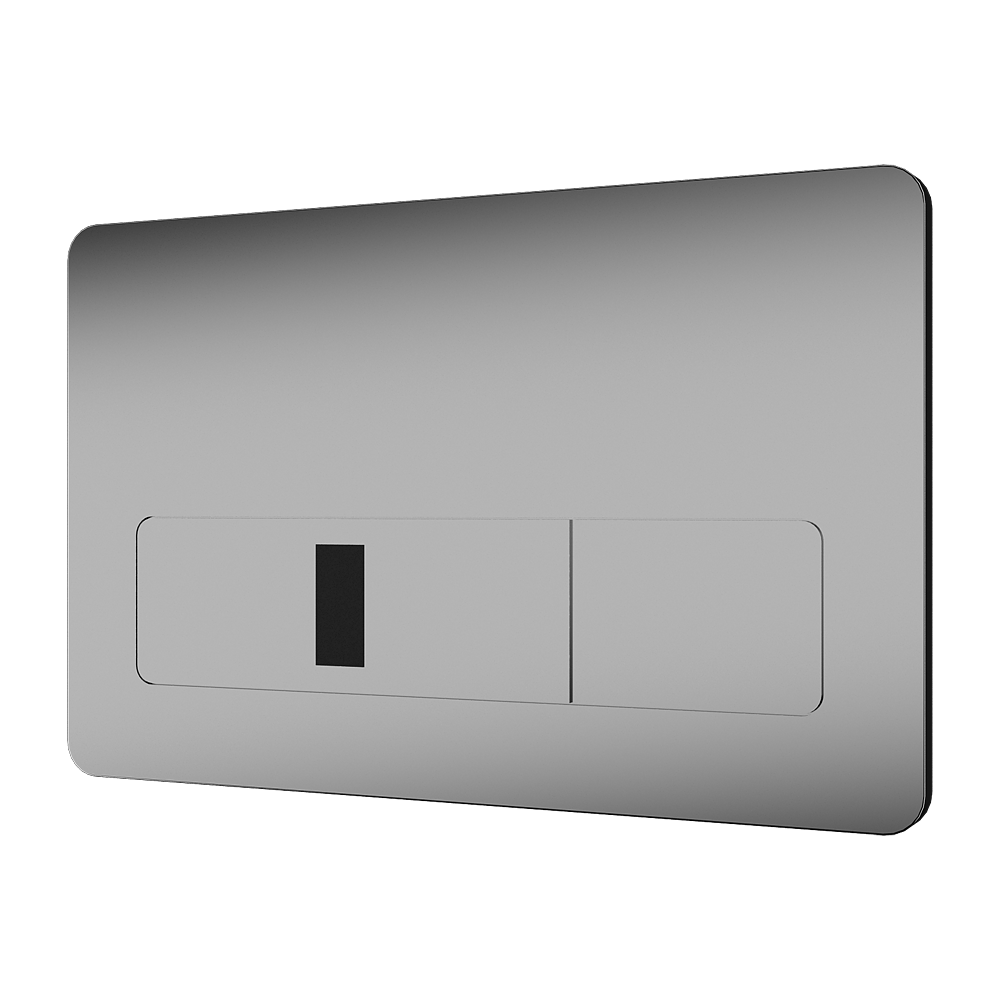

SLW 05A

Automatic toilet flushing unit for Jika installation systems, 24 V DC

Characteristics

  • flushing unit destined for Jika mounting frames 8.9565.0, 8.9565.1 a 8.9565.2
  • system reacts to the user attendance in active range of the sensor at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 s
  • water flows after the user leaves active range
  • flushing times: „short flushing“ (2 s) = min. stay time in active range is 7,5 s, max. stay time is 45 s, „long flushing“ (5 s) = min. stay time in active range is 45 s
  • possibility of additional manual flush by push-button (f.e. during the cleaning)
  • automatic hygiene flush after each 8 use of toilet and after 24 hours non-use
  • parameters adjustment by remote control SLD 03
  • Order number: 04056

Supply specification

SLW 05A - Supply No. 04056 - flush plate PL3 Dual Flush (white plastic) with electronics, stainless steel holder of electromagnet, electromagnet

Technical information

flushing type: from tank in mounting frame
material: plastic
power supply: 24V DC
control: infra-red
Flush plate dimension: 250 x 160 mm
Operating voltage: 24 V DC
Active range: 0,6 - 0,75 m

Downloads

Accessories

Remote control for an adjustment of…
External power supply 230 V AC/24 V DC
External power supply 230 V AC/24 V DC
External power supply 24 V DC for…
External power supply 24 V DC for…
External power supply 24 V DC for…
The display of the products on the website is for information only. The producer reserves the right to make technical changes or parameters. The producer makes every effort to keep the information published here as up-to-date as possible, but does not guarantee that all data is accurate and current at the time.
