SLW 02GT
Automatic toilet flushing units for Geberit installation systems, push-button SIGMA 10
Characteristics
- flushing unit destined for Geberit mounting frames KOMBIFIX: 110.367.00.5, 110.300.00.5, DUOFIX SPECIAL:111.355.00.5, DUOFIX: 111.300.00.5, 111.367.00.5, 111.350.00.5,111.390.00.5
- system reacts to the user attendance in active range of the sensor at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 s
- water flows after the user leaves active range
„short flushing“ (2 s)
= min. stay time in active range is 7,5 s, max. stay time is 45 s
„long flushing“ (6 s)
= min. stay time in active range is 45 s - possibility of additional manual flush by push-button (f.e. during the cleaning)
- automatic hygiene flush after each 8 use of toilet and after 24 hours non-use
- parameters adjustment by remote control SLD 03
- Order number: 14022
I am interested in more information:
Supply specification

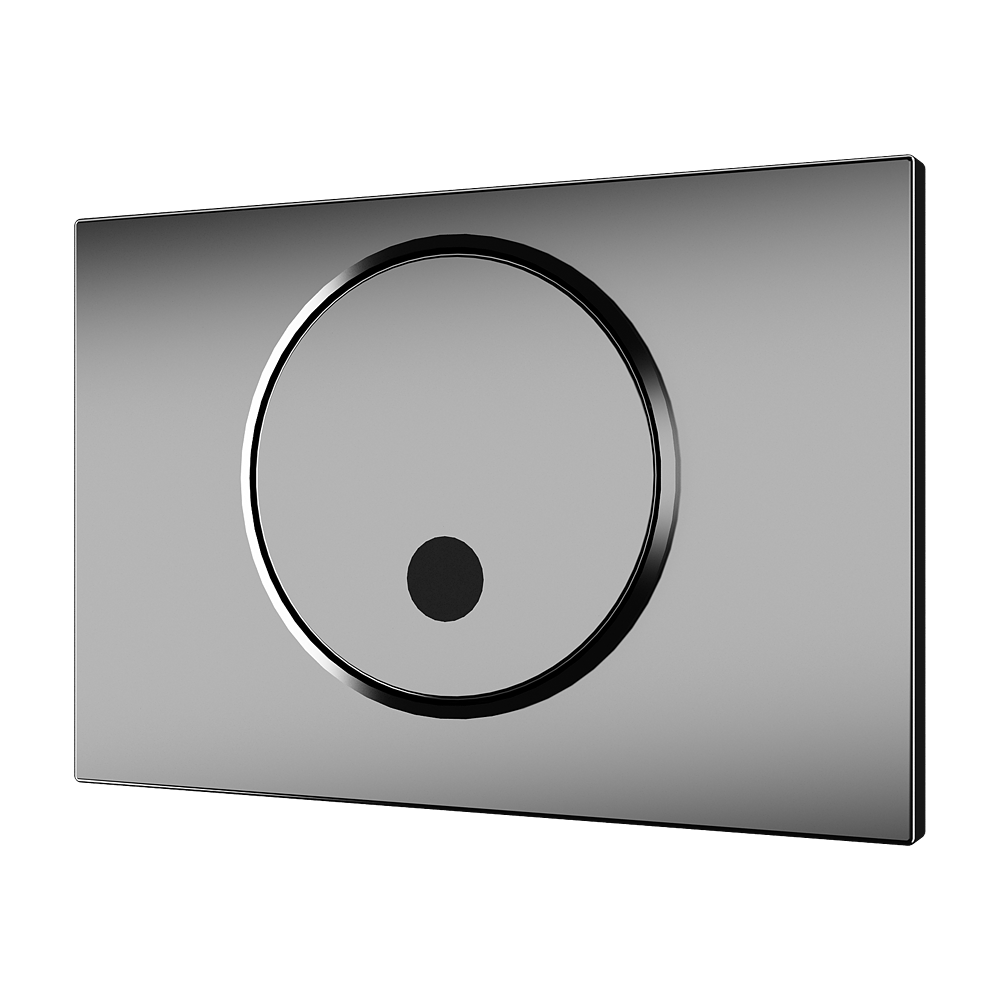

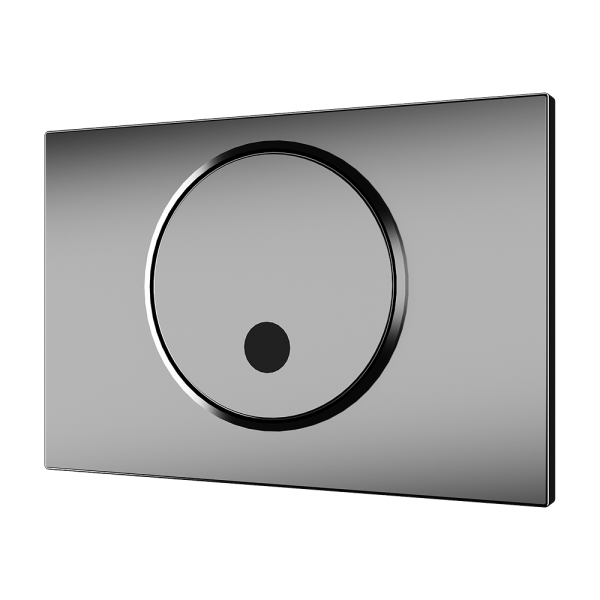

SLW 02GT - Supply No. 14022 - stainless steel flush plate SIGMA 10 with electronics, control mechanism with servomotor
Technical information
| Flushing type: | from tank in mounting frame |
| Material: | plastic |
| Power supply: | 24V DC |
| Control: | infra-red |
| Flush plate dimension: | 247 x 165 mm |
| Operating voltage: | 24 V DC |
| Active range: | 0,63 - 0,75 m |
Downloads
- Mounting instructions (1.72 MB)
- Catalogue list (149.65 kB)
- 2D Drawing (47.73 kB)
Accessories
