SLUN 51PT

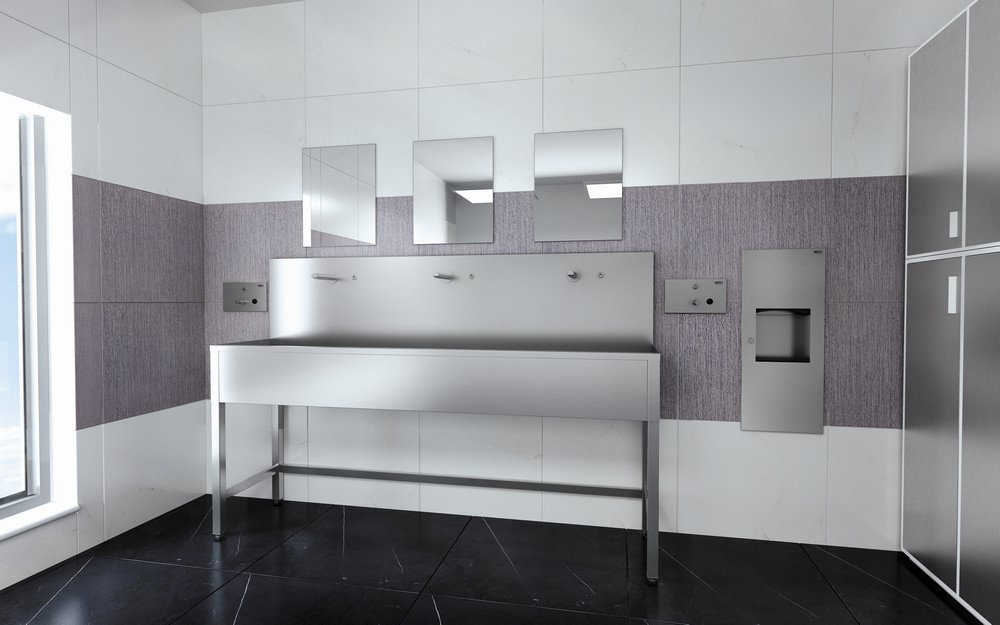

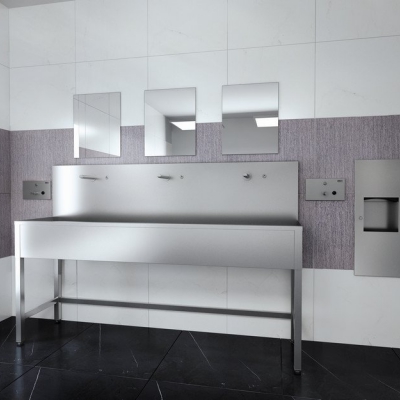

Stainless steel trough with 3 integrated piezo electronics, thermostatic valve, length 1900 mm, brushed, 24 V DC

Characteristics

  • economical aerator, rate of flow 6l/min
  • hygienic flush
  • vandal-proof
  • suitable for medical facilities
  • stainless steel floor standing washing troughs with integrated piezo electronics
  • vandal-proof stainless steel spouts
  • SLUN 51P, PT - length 1900 mm (3 pcs. of electronics)
  • water flows after soft push of the piezo button
  • water stops flowing after adjustable flowing time (can be set in 2 - 62 s), standard 10 s
  • water could be stopped by follow-up soft push of piezo button
  • parameter adjustment using by the remote control SLD 04
  • temperature is regulated by thermostatic valve
  • different lenghts could be made to order
  • material AISI - 304
  • could be made to order from stainless steel AISI - 316L
  • brushed finish
  • Order number: 93514
I am interested in more information:

Supply specification

SLUN 51PT - Supply No. 93514 - stainless steel washing trough with piezo electronics and spouts, electromagnetic valve (3 pcs.), connecting hoses, angle valve with filter (2 pcs.), siphon, thermostatic valve

Technical information

Operating voltage: 24 V DC
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 1/2“
