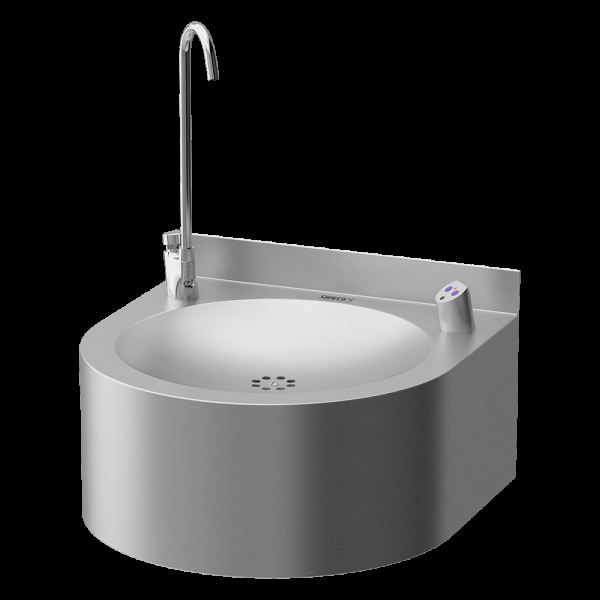

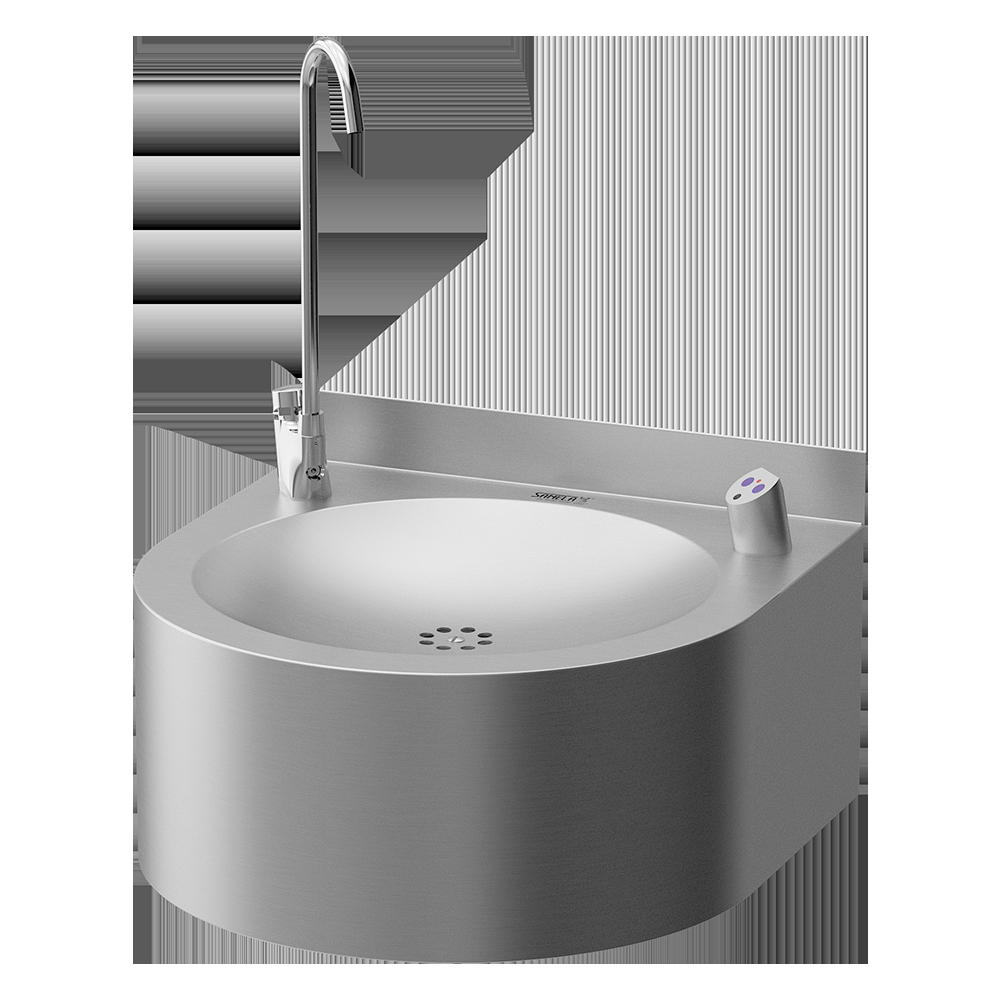

SLUN 14ENS
Stainless steel automatic drinking fountain
New product
Characteristics
- hygienic flush
- wall-mounted stainless steel drinking fountain with automatic control outlet and fitting for filling glasses
- responds to bringing the mouth close to the drinking fitting with immediate turning on the water
- the water turns off after the mouth is moved away from the detection zone
- safety function: water shuts off after 5 minutes
- option to switch to START/STOP mode
- parameter settings via remote control SLD 03
- mechanical water flow restriction
- material stainless steel AISI 304 (1.4301)
- brushed finish
- Order number: 93148
- EAN: 8591385931482
I am interested in more information:
Supply specification
SLUN 14ENS - Supply No. 93148 - stainless steel drinking fountain with electronics, drinking fitting, fitting for filling glasses, solenoid valve (1 pc.), angle valve with filter (1 pc.), connecting hose, siphon, mounting set
Technical information
| Dimensions: | 350 x 350 x 430 mm |
| Weight: | 5,5 kg |
| Supply voltage: | 24 V DC |
| Power input: | 7 W |
| Range: | 0,23 - 0,31 m |
| Recommended working pressure: | 0,1 - 0,6 MPa |
| Flow rate: | 1,4 l/min. (informative value) |
| Water inlet: | internal thread G 1/2" |
Downloads
- Mounting instructions (3.87 MB)
- Catalogue list (174.13 kB)
- 2D Drawing (200.91 kB)
