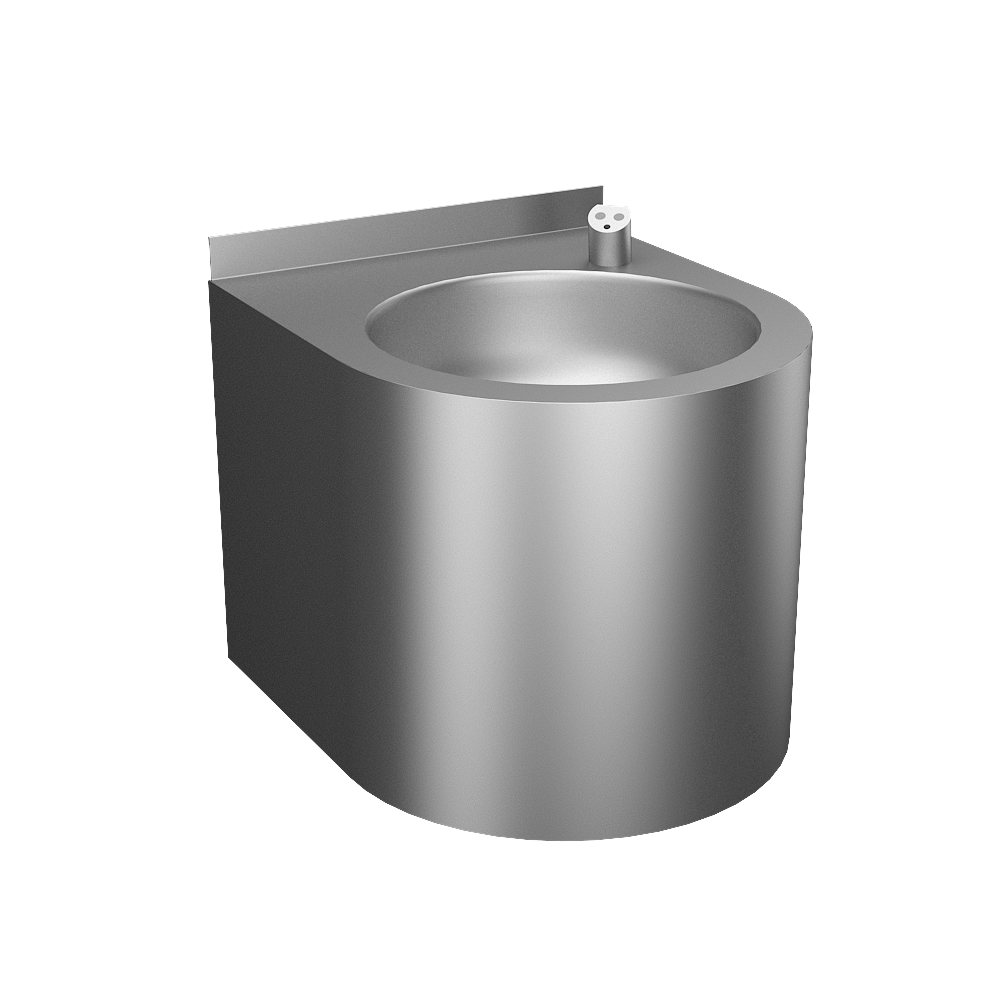

SLUN 14E
Stainless steel wall hung automatic drinking fountain, 24 V DC
Characteristics
- hygienic flush
- stainless steel wall hung drinking fountain with automatic infra-red drinking spout
- system reacts to the user‘s face in front of the sensor
- water stops after user leaving the active range of the sensor
- function of automatic water stop after 5 minut of continuous flow
- START/STOP program
- parameter adjustment using by the remote control SLD 03
- water flow regulation on drinking spout
- material AISI - 304
- polished finish
- Order number: 93141
I am interested in more information:
Supply specification
SLUN 14E - Supply No. 93141 - stainless steel drinking fountain, drinking spout with electronics, electromagnetic valve (1 pc.), angle valve with filter (1 pc.), connecting hoses, siphon, mounting set
Technical information
Material: | polished stainless steel |
Temperature regulation: | for cold or premixed water |
Power supply: | 24V DC |
Installation: | wall hung |
Control: | infra-red |
Operating voltage: | 24 V DC |
Active range: | 0,23 - 0,31 m |
Recommended flow pressure: | 0,1 - 0,6 MPa |
Rate of flow: | 1,4 l/min. (inf. data) |
Water inlet: | male thread G 1/2" |
Downloads
- Mounting instructions (2.56 MB)
- Catalogue list (467.22 kB)
- 2D Drawing (176.31 kB)
