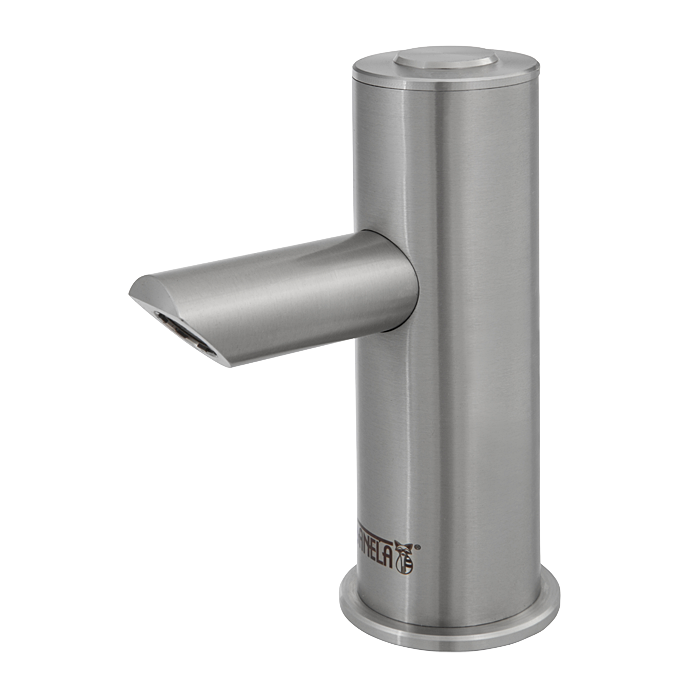

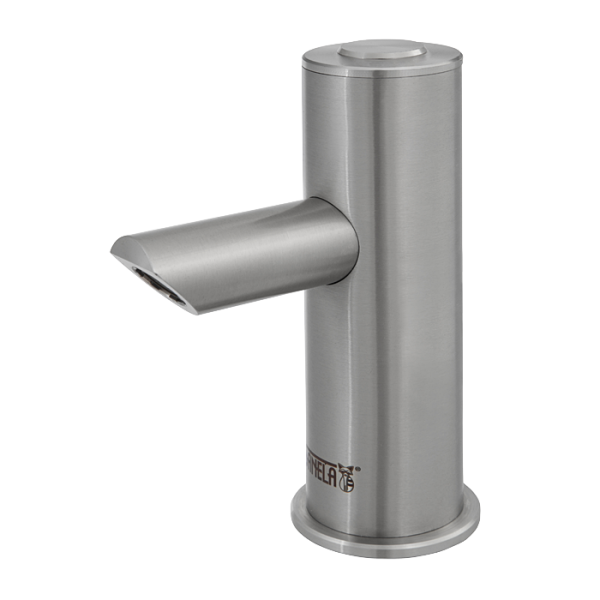

SLU 93NP

Piezo stainless steel washbasin mixer, temperature is regulated by angle valves, 24 V DC

Characteristics

  • economical aerator, rate of flow 6 l/min
  • hygienic flush
  • vandal-proof
  • lead free
  • whole stainless steel
  • electromagnetic valve is in the tap body
  • SLU 93NP is destined for cold and hot water, temperature is regulated by angle valves
  • water flows after soft push of the piezo button
  • water stops flowing after adjustable flowing time (can be set in 2 - 62 s), standard 10 s
  • water could be stopped by follow-up soft push of piezo button
  • parameter adjustment using by the remote control SLD 04
  • Order number: 66931
I am interested in more information:

Supply specification

SLU 93NP - obj. č. 66931 - faucet with piezo electronics and electromagnetic valve, Y-piece, connecting hoses, filter with check valve (2 pcs.)

Technical information

Material: stainless steel
Temperature regulation: for cold and hot water
Power supply: 24V DC
Control: piezo
Operating voltage: 24 V DC
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 1/2“
