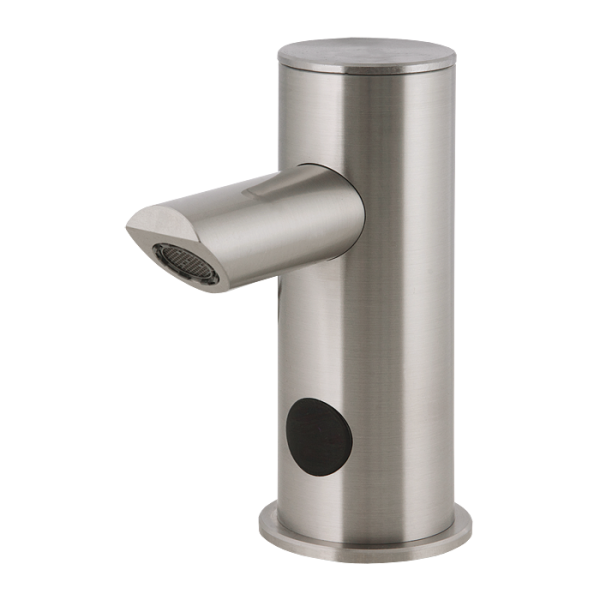

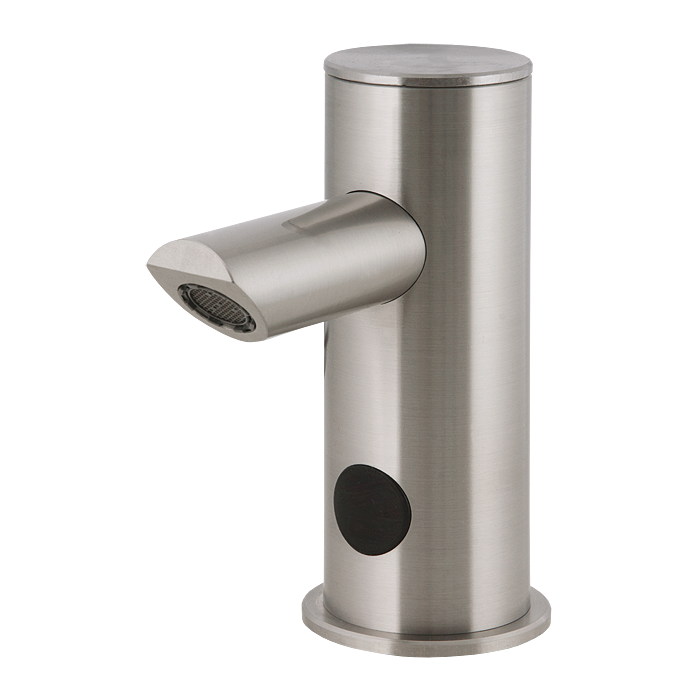

SLU 93N

Automatic stainless steel washbasin tap, temperature is regulated by angle valves, 24 V DC

Characteristics

  • economical aerator, rate of flow 6l/min
  • hygienic flush
  • lead free
  • whole steinless steel
  • electromagnetic valve is in the tap body
  • SLU 93N is destined for cold and hot water, temperature is regulated by angle valves
  • water is flowing as long as hands are in the active range
  • water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 – 7,75 s)
  • function of automatic water stop after 5 minut of continuous flow
  • START/STOP program
  • parameter adjustment using by the remote control SLD 03
  • Order number: 23938

Supply specification

SLU 93N - Supply No. 23938 - faucet with electronics and electromagnetic valve, Y-piece, connecting hoses, filter and check valve (2 pcs.)

Technical information

material: stainless steel
temperature regulation: for cold and hot water
power supply: 24V DC
control: infra-red
Operating voltage: 24 V DC
Active range: standard 0,13 - 0,19 m, START/STOP program
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 1/2“
