View category

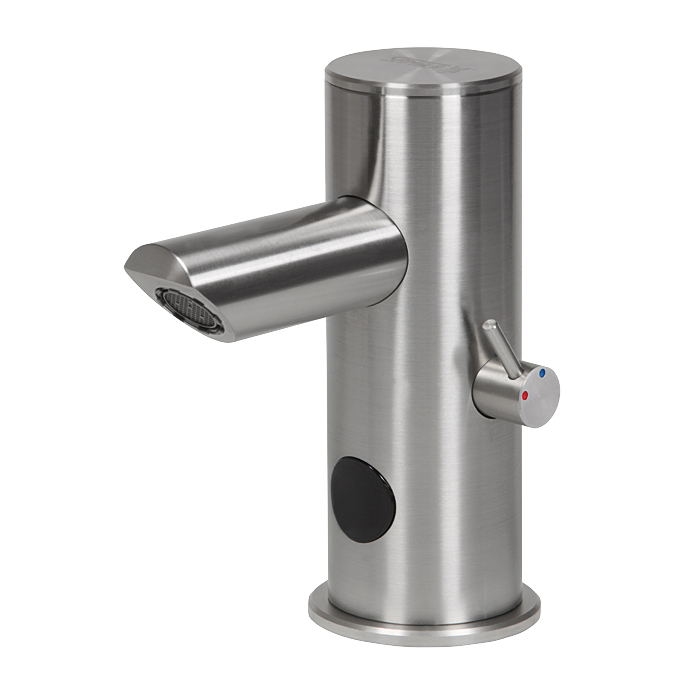

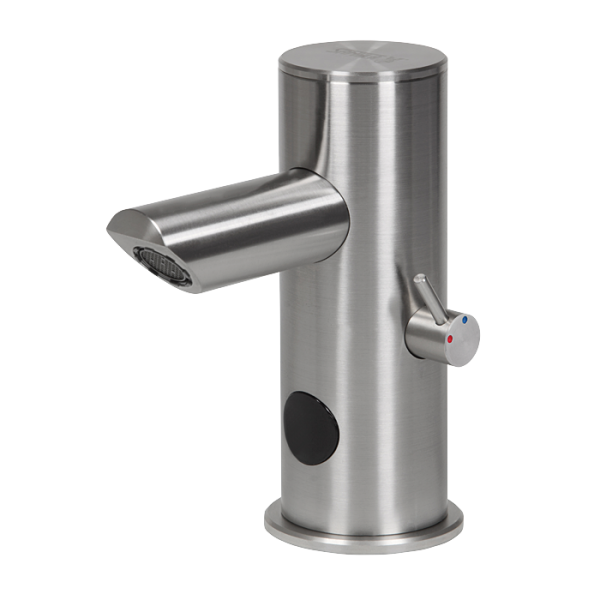

SLU 92N

Automatic stainless steel washbasin mixer, 24 V DC

Characteristics

  • economical aerator, rate of flow 6l/min
  • hygienic flush
  • lead free
  • whole steinless steel
  • electromagnetic valve is in the tap body
  • SLU 92N is destined for cold and hot water, temperature is regulated by mixer
  • water is flowing as long as hands are in the active range
  • water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 – 7,75 s)
  • function of automatic water stop after 5 minut of continuous flow
  • START/STOP program
  • parameter adjustment using by the remote control SLD 03
  • Order number: 23928

Supply specification

SLU 92N - Supply No. 23928 - faucet with mixer and electronics and electromagnetic valve, connecting hoses, filter and check valve (2 pcs.)

Technical information

material: stainless steel
temperature regulation: with mixer
power supply: 24V DC
control: infra-red
Operating voltage: 24 V DC
Active range: standard 0,13 - 0,19 m, START/STOP program
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 1/2“

Downloads

The display of the products on the website is for information only. The producer reserves the right to make technical changes or parameters. The producer makes every effort to keep the information published here as up-to-date as possible, but does not guarantee that all data is accurate and current at the time.
