SLU 91ND

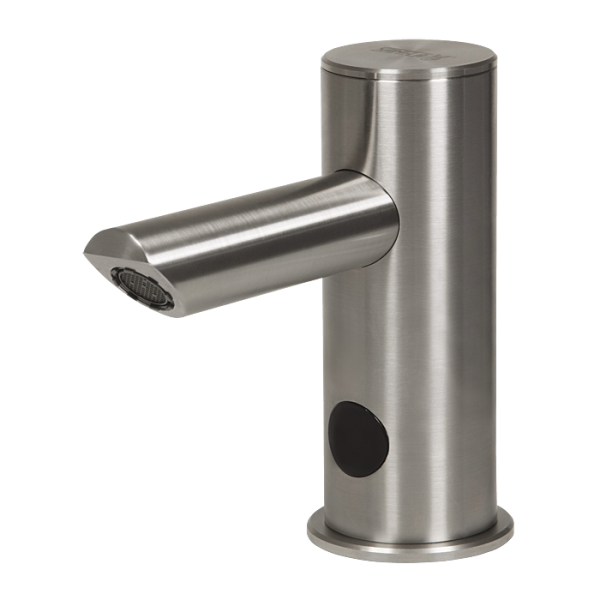

Automatic stainless steel washbasin tap for cold or premixed water, longer outlet arm, 24 V DC
Characteristics
- economical aerator, rate of flow 6l/min
- hygienic flush
- lead free
- whole steinless steel
- electromagnetic valve is in the tap body
- SLU 91N is destined for cold or premixed water
- index „D“ - longer spout
- water is flowing as long as hands are in the active range
- water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 – 7,75 s)
- function of automatic water stop after 5 minut of continuous flow
- START/STOP program
- parameter adjustment using by the remote control SLD 03
- Order number: 53916
I am interested in more information:
Supply specification
SLU 91ND - Supply No. 53916 - faucet with an electronics and electromagnetic valve, connecting hoses, filter (1 pc.)
Technical information
| Material: | stainless steel |
| Temperature regulation: | for cold or premixed water |
| Power supply: | 24V DC |
| Control: | infra-red |
| Operating voltage: | 24 V DC |
| Active range: | standard 0,13 - 0,19 m, START/STOP program |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 6 l/min. (inf. data) |
| Water inlet: | male thread G 1/2“ |
Downloads
- Mounting instructions (1.74 MB)
- Catalogue list (379.45 kB)
- 2D Drawing (75.97 kB)
