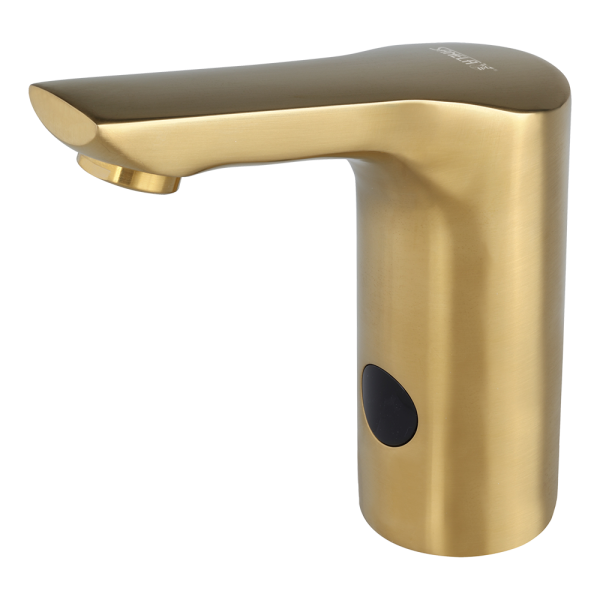

SLU 57GX
Automatic washbasin tap for cold and hot water, GOLD MATT, 24 V DC
New product
Characteristics
- includes Bluetooth control (paid Sanela Control app available for download)
- economical aerator, rate of flow 6 l/min
- hygienic flush
- durable PVD surface finish
- is destined for cold and hot water, temperature is regulated by angle valves
- water is flowing as long as hands are in the active range
- water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 – 7,75 s)
- function of automatic water stop after 5 minut of continuous flow
- START/STOP program
- perameter setting and communication with the electronics via the Sanela Control app (Bluetooth) or SLD 03
- Order number: 13573
- EAN: 8591385135736
I am interested in more information:
Supply specification
SLU 57GX - Supply No. 13573 - faucet with an electronics, electromagnetic valve (1 pc.), Y-piece, connecting hoses, angle valve with filter and check valve (2 pcs.)
Technical information
| Dimensions: | 152 x 145 mm |
| Weight: | 1,74 kg |
| Operating voltage: | 24 V DC |
| Power input: | 7 W |
| Active range: | standard 0,13 - 0,19 m, START/STOP program 0,05 - 0,15 m |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 6 l/min. (inf. data) |
| Water inlet: | male thread G 1/2“ |
Downloads
- Mounting instructions (3.47 MB)
- Catalogue list (181.26 kB)
