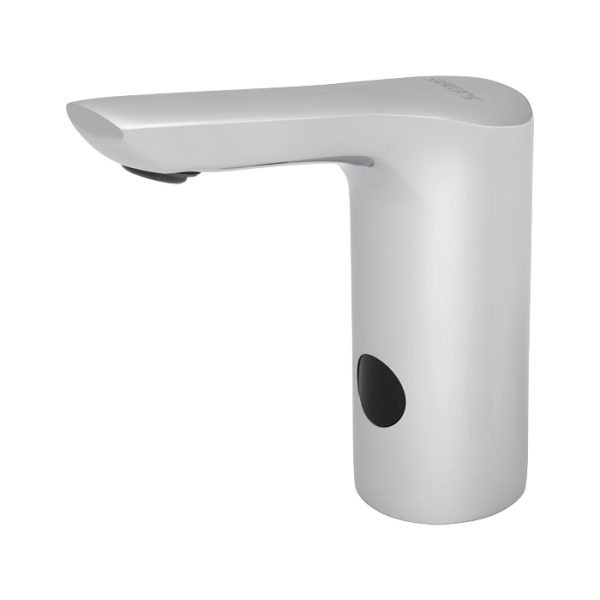

SLU 56
Automatic washbasin tap for cold or premixed water, 24 V DC
Characteristics
- includes Bluetooth control (paid Sanela Control app available for download)
- economical aerator, flow rate 6 l/min
- hygienic flush
- is designed for single-pipe supply of cold or pre-mixed water
- responds to the presence of hands in the sensing zon with immediate water activation
- water shuts off after hands are removed and the set time elapses (can be set in the range 0.25 – 7.75 s)
- safety function: water shut-off after 5 minutes
- option to switch to START/STOP mode
- parameter settings and communication with the electronics via Sanela Control app (Bluetooth) or the SLD 03
- the product meets the water consumption parameters for class 1. according to the EU Water Label criteria
- Order number: 03560
I am interested in more information:
Supply specification
SLU 56 - Supply No. 03560 - tap body including Bluetooth module, with electronics, solenoid valve (1 pc.), connecting hose
Technical information
| Dimensions: | 152 x 145 mm |
| Weight: | 1,5 kg |
| Operating voltage: | 24 V DC |
| Power input: | 7 W |
| Active range: | standard 0,13 - 0,19 m, START/STOP program 0,05 - 0,15 m |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 6 l/min. (inf. data) |
| Water inlet: | male thread G 1/2“ |
Downloads
- Mounting instructions (2.47 MB)
- Catalogue list (139.68 kB)
- 2D Drawing (266.3 kB)
