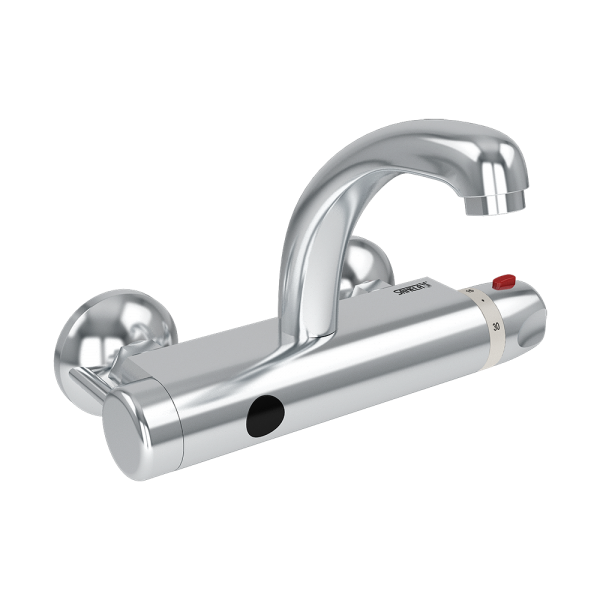

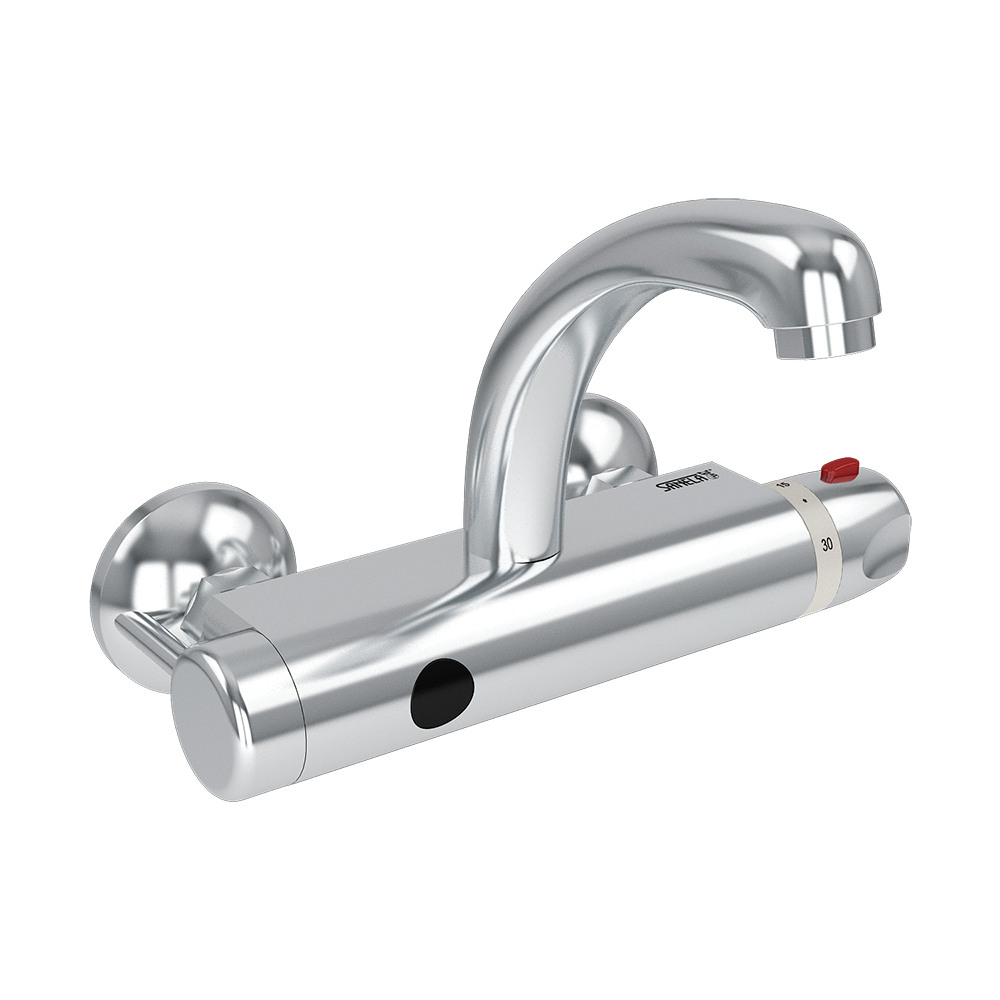

SLU 25K
Wall-mounted thermostatic mixer, water supply span 100 mm, 24V DC
We are sorry, but this product is no longer in our offer. Please, try to choose another from our offer
Characteristics
- economical aerator, rate of flow 6 l/min
- suitable for medical facilities
- function of automatic water stop after 5 minutes of continuous flow
- mixers are destined for cold and hot water, water temperature is regulated by automatic thermostatic mixer, pressure of hot and cold water must be the same
- water is flowing as long as hands are in the active range (max. range to 0,3 m)
- water stops flowing after removal of hands from the active range of sensor after adjustable time delay
- adjustable time delay from 0,25 to 7,75 sec.
- possibility of changing of time delay, active range and switching off by SLD 03
- safety fuse against scalding
- START/STOP program
- Order number: 13257
I am interested in more information:
Supply specification
SLU 25K - supply No. 13257 - chromium-plated faucet with an integrated electronics; built-in thermostatic mixer and electromagnetic valve (1 pc.); regulating tap connection (2 pcs.); chromium-plated cover (2 pcs.); swivel spout (chromium-plated); filter (2 pcs.)
Technical information
| Material: | chrome |
| Temperature regulation: | with thermostat |
| Power supply: | 24V DC |
| Control: | infra-red |
Operating voltage: 24V DC
Active range: standard 0,07 - 0,4 m, START/STOP program 0,05 - 0,15 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 1/2˝
Water outlet: swivel spout
Temperature regulation: by automatic thermostatic mixer
Downloads
- Mounting instructions (1.9 MB)
- 2D Drawing (127.7 kB)
- Catalogue list
