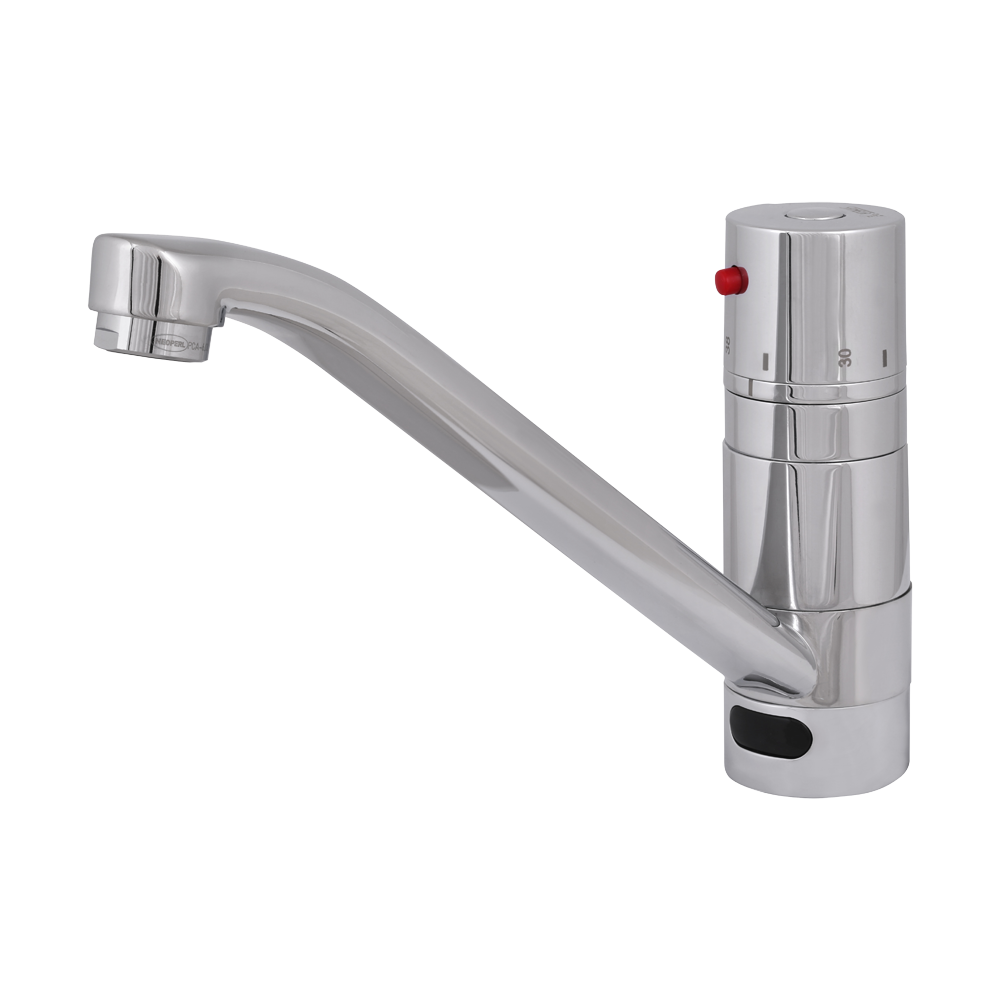

SLU 24D

Washbasin and sink thermostatic mixer with elongated spout, 24 V DC

Characteristics

  • hygienic flush
  • fixed faucet
  • is destined for cold and hot water, temperature is regulated by thermostatic mixer
  • safety fuse against scalding
  • stop flowing of hot water till 1 s in case of cold water failure
  • pressure of hot and cold water must be same
  • water is flowing as long as hands are in the active range
  • water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 – 7,75 s)
  • function of automatic water stop after 5 minut of continuous flow
  • START/STOP program
  • parameter adjustment using by the remote control SLD 03
  • Order number: 13241

Supply specification

SLU 24D - Supply No. 13241 - elongated faucet with thermostat and electronics, holder of electronics, electromagnetic valve (2 pcs.), connecting hoses, angle valve with filter and check valve (2 pcs.)

Technical information

material: chrome
temperature regulation: with thermostat
power supply: 24V DC
control: infra-red
Operating voltage: 24 V DC
Active range: standard 0,17 - 0,25 m, START/STOP program 0,05 - 0,15 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 1/2“

Downloads

Accessories

Economical aerator 3,8 l/min for SLU…
Economical aerator 1,9 l/min for SLU…
Remote control for an adjustment of…
External power supply 230 V AC/24 V DC
External power supply 230 V AC/24 V DC
External power supply 24 V DC for…
External power supply 24 V DC for…
External power supply 24 V DC for…
The display of the products on the website is for information only. The producer reserves the right to make technical changes or parameters. The producer makes every effort to keep the information published here as up-to-date as possible, but does not guarantee that all data is accurate and current at the time.
