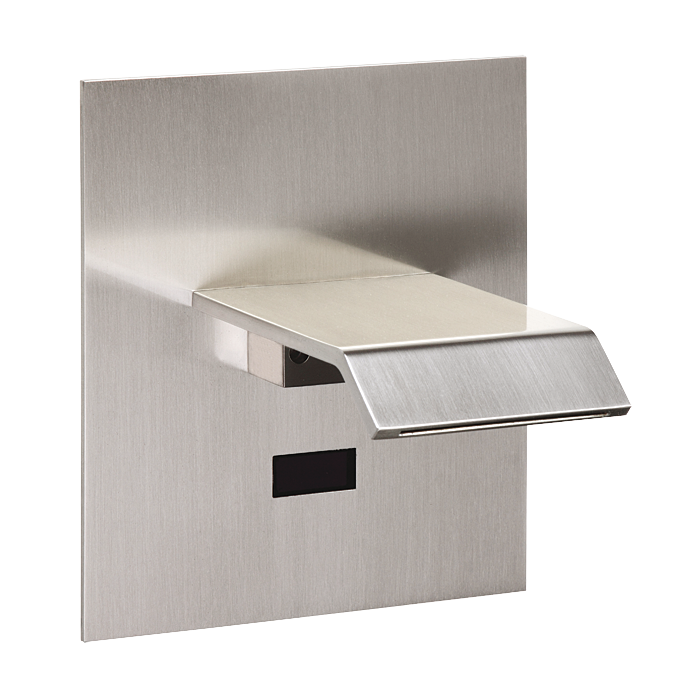

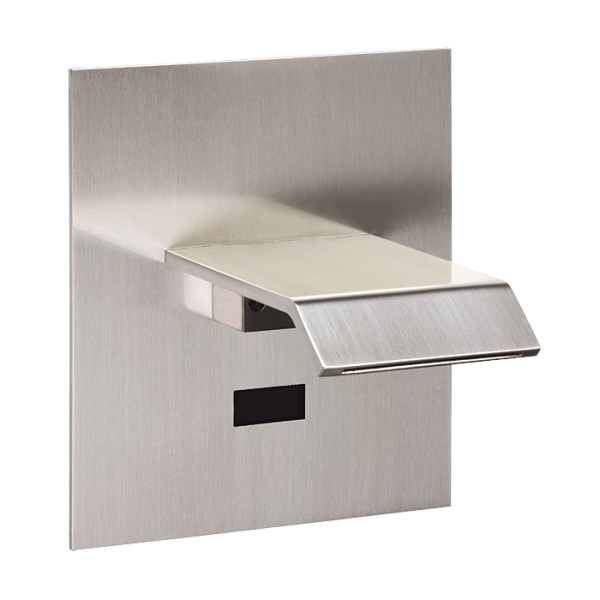

SLU 14X

Wall-mounted tap for cold and hot water, brushed finish, 24V DC

Characteristics

  • SLU 14X - brushed finish
  • function of automatic water stop after 5 minutes of continuous flow
  • water is flowing as long as hands are in the active range (max. range to 0,3 m)
  • water stops flowing after removal of hands from the active range of sensor after adjustable time delay
  • adjustable time delay from 0,25 to 7,75 sec.
  • possibility of changing of time delay, active range and switching off by SLD 03
  • washbasin tap is destined for cold or premixed water, water temperature is regulated by ball valve
  • START/STOP program
  • Order number: 64144

Supply specification

SLU 14X - supply No. 64144 - stainless steel cover with an integrated electronics; spout 125 mm; plastic mounting box with brass screw-coupling, electromagnetic valve (1 pc.) and ball valve

Technical information

Stainless steel cover dimension: 160 x 180 x 3 mm
Mounting box dimension: 140 x 140 x 75 mm
Operating voltage: 24V DC external
Active range: standard 0 - 0,3 m, START/STOP program 0,05-0,1 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 3/4“

Downloads

Accessories

Remote control for an adjustment of…
Thermostatic mixing valve 3/4" (28l/min)
Thermostatic mixing valve 1/2” (20l/min)
Thermostatic mixing valve 3/4" (43l/min…
Thermostatic mixing valve 1" (53l/min.)
Thermostatic mixing valve 5/4" (82l/min…
Thermostatic mixing valve 6/4" (155l…
External power supply 230 V AC/24 V DC
External power supply 230 V AC/24 V DC
External power supply 24 V DC for…
External power supply 24 V DC for…
External power supply 24 V DC for…
External power supply for 1 washbasin…
