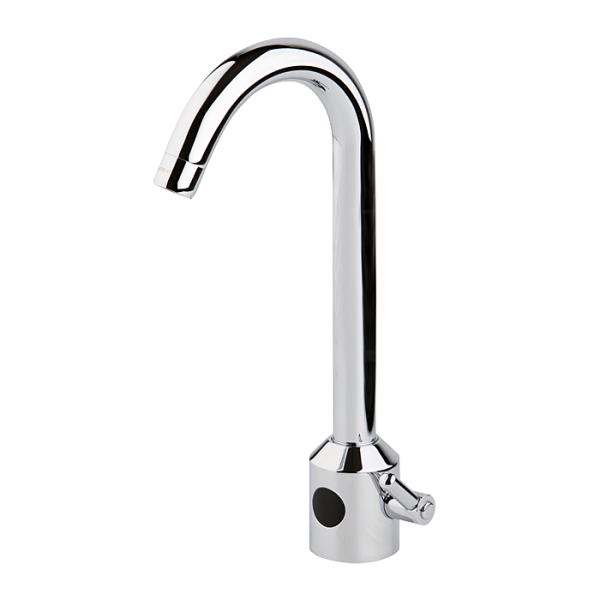

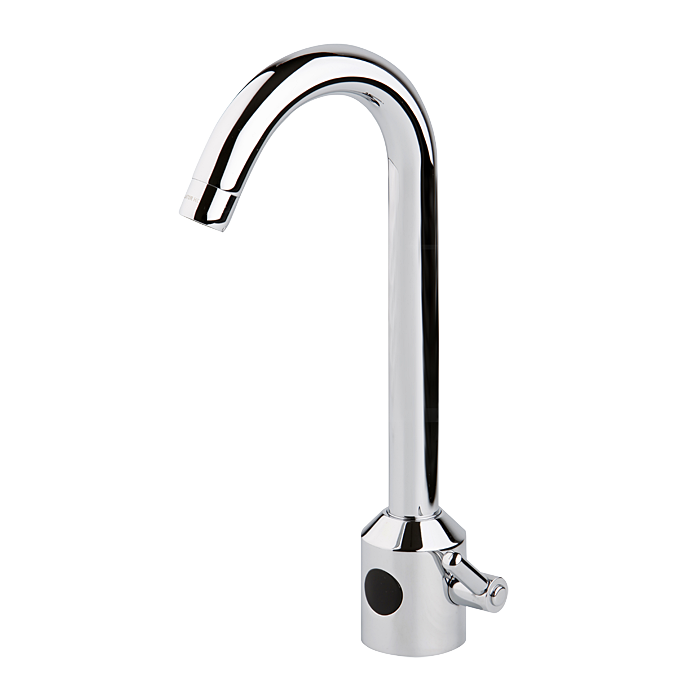

SLU 08ND

Washbasin elongated mixer, 24 V DC

Characteristics

economical aerator, rate of flow 6 l/min
hygienic flush
suitable for medical facilities
index „D“ - higher faucet
are destined for cold and hot water, temperature is regulated by mixer
water is flowing as long as hands are in the active range
water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 – 7,75 s)
function of automatic water stop after 5 minut of continuous flow
START/STOP program
parameter adjustment using by the remote control SLD 03

Order number	63088
Code	SLU 08ND

Supply specification

SLU 08ND - Supply No. 63088 - faucet with mixer and electronics, electromagnetic valve (2 pcs.), connecting hoses, angle valve with filter and check valve (2 pcs.)

Technical information

Operating voltage: 24 V DC
Active range: standard 0,13 - 0,19 m, START/STOP program 0,05 - 0,15 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 1/2“
