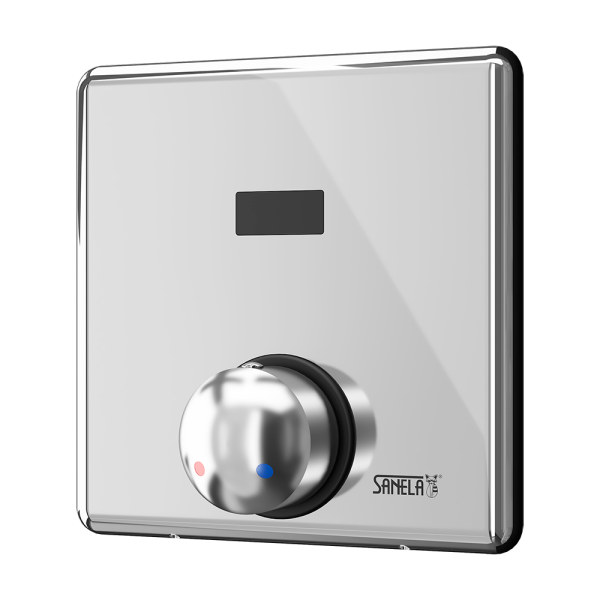

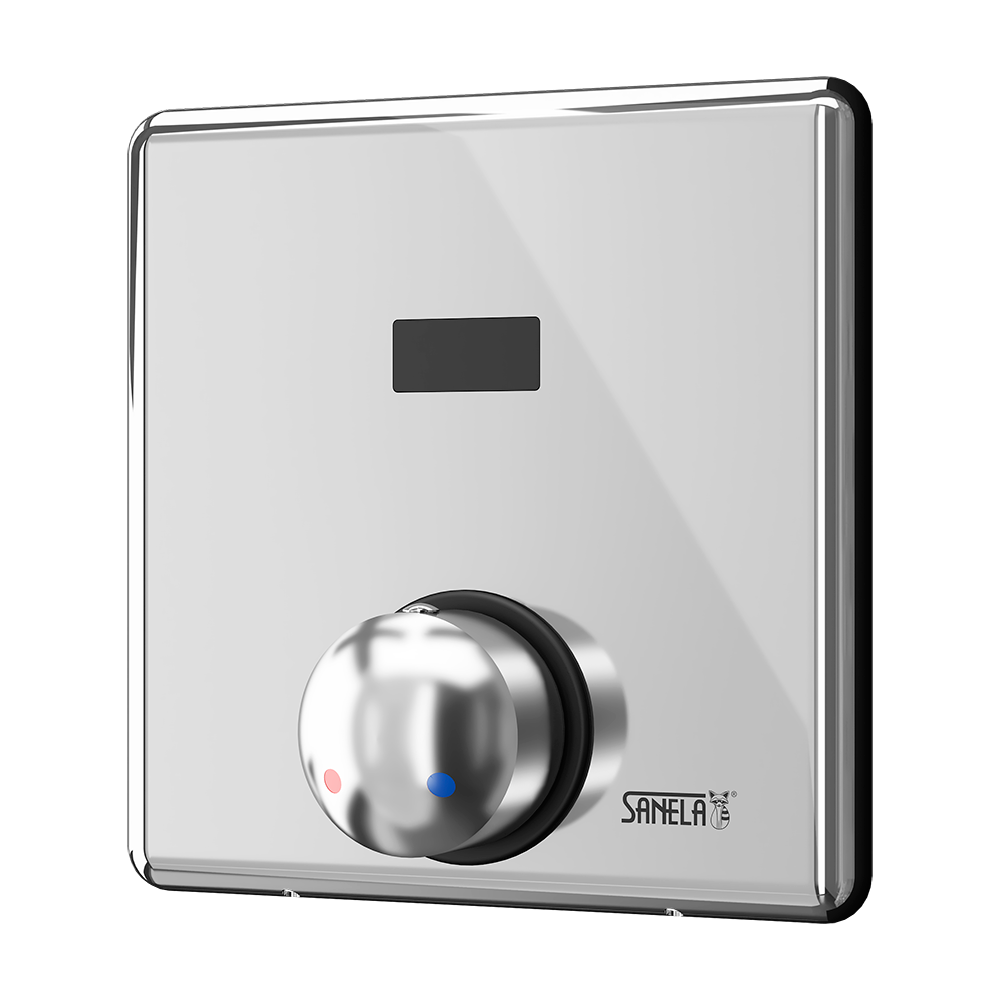

SLS 02
Shower control with mixer, 24 V DC
Characteristics
- hygienic flush
- SLS 02 are destined for cold and hot water, temperature is regulated by mixer
- water is flowing as long as an user is in the active range
- water stops flowing after the user leaves the active range sensor after adjustable time delay (can be set in range 0,25 - 7,75 s), standard 2 s
- function of automatic water stop after 5 minut of continuous flow
- START/STOP program
- parameter adjustment using by the remote control SLD 03
- Order number: 02020
I am interested in more information:
Supply specification
SLS 02 - Supply No. 02020 - stainless steel cover with electronics, stainelss steel mounting box with brass screw coupling, electromagnetic valve, ball valve and mixer
Technical information
| Material: | stainless steel |
| Temperature regulation: | with mixer |
| Power supply: | 24V DC |
| Control: | infra-red |
| Stainless steel cover dimension: | 170 x 170 x 10 mm |
| Mounting box dimension: | 150 x 160 x 65 mm |
| Operating voltage: | 24 V DC |
| Active range: | standard 0,27 - 0,35 m, START/STOP program 0,05 - 0,15 m |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 12 l/min. (inf. data) |
| Water inlet: | male thread G 3/4“ |
| Water outlet: | male thread G 3/4“ |
Downloads
- Mounting instructions (2.58 MB)
- Catalogue list (622 kB)
- 2D Drawing (322.02 kB)
