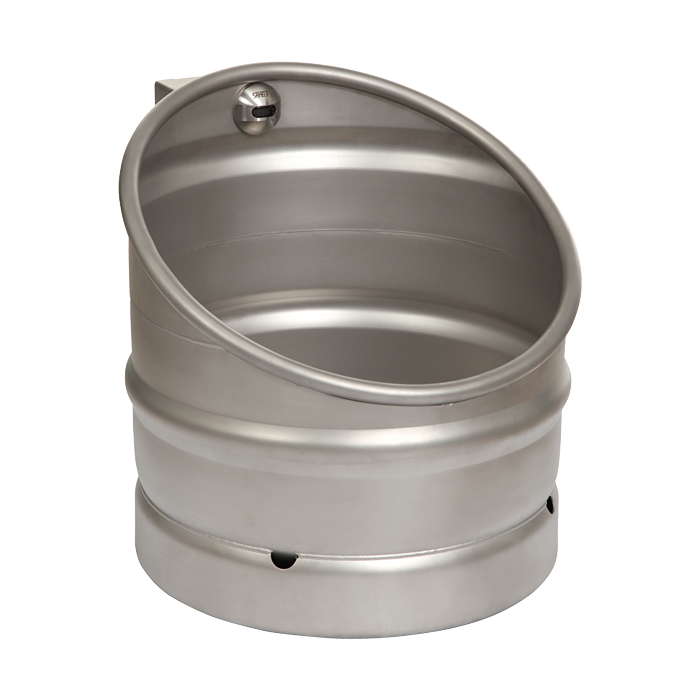

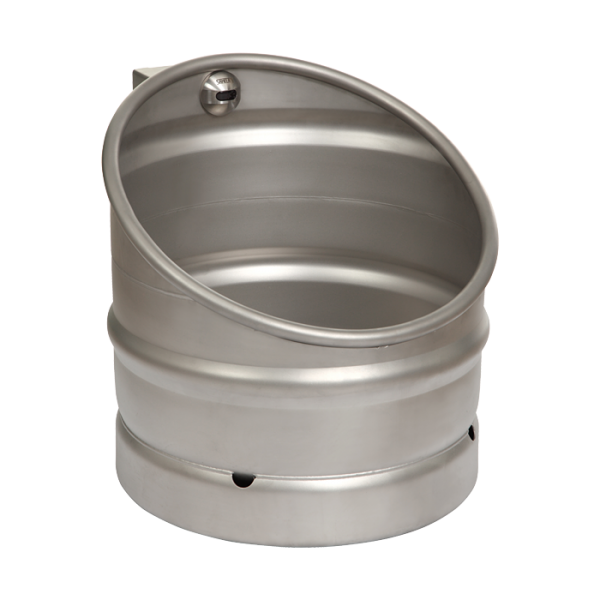

SLPN 10E
Stainless steel KEG urinal with infra-red flushing unit, 24 V DC
Characteristics
- vandal-proof
- stainless steel wall hung urinal with integrated infra-red electronics
- rear assembling by the mounting plate and special screws
- system reacts to the user attendance in front of the urinal at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 s
- system flushes after leaving of user from active range
- adjustable flushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 03
- automatic hygiene flushing after 24 hours non-use
- material AISI - 304
- brushed finish
- Order number: 91109
I am interested in more information:
Supply specification
SLPN 10E - Supply No. 91109 - stainless steel urinal with flushing head and electronics, electromagnetic valve, angle valve with filter, connecting hoses, mounting set, siphon
Technical information
Category: | urinal |
Power supply: | 24V DC |
Control: | infra-red |
Operating voltage: | 24 V DC |
Active range: | 0,6 - 0,75 m |
Recommended flow pressure: | 0,1 - 0,6 MPa |
Rate of flow: | 12 l/min. (inf. data) |
Water inlet: | male thread G 1/2" |
Downloads
- Mounting instructions (3.72 MB)
- Catalogue list (204.76 kB)
- Mounting diagram (385.92 kB)
- 2D Drawing (250.61 kB)
Accessories
Related Products
