SLP 99RB
Urinal radar flushing unit made to order, 6V
We are sorry, but this product is no longer in our offer. Please, try to choose another from our offer
Characteristics
- system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid (urine) is flowing through)
- adjustable flushing time from 0,5 to 15,5 sec.
- adjustable minimum use time (min. time of urinal direct using) from 6 to 15 sec.
- parameters adjustment by SLD 04 remote control (without the necessity to dismantle the urinal from the wall)
- automatic flushing after each 6 hours non-use
- possibility to regulate a water flow by the angle valve
- radar flushing unit recharges a water to the siphon after each flushing
- TYPE OF URINAL MUST BE MENTIONED IN THE ORDER!
- Order number: 11997
I am interested in more information:
Supply specification

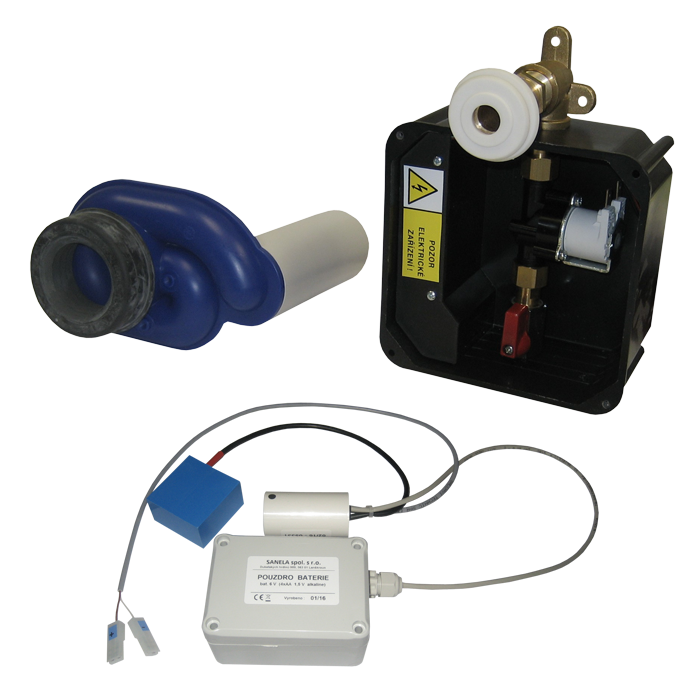

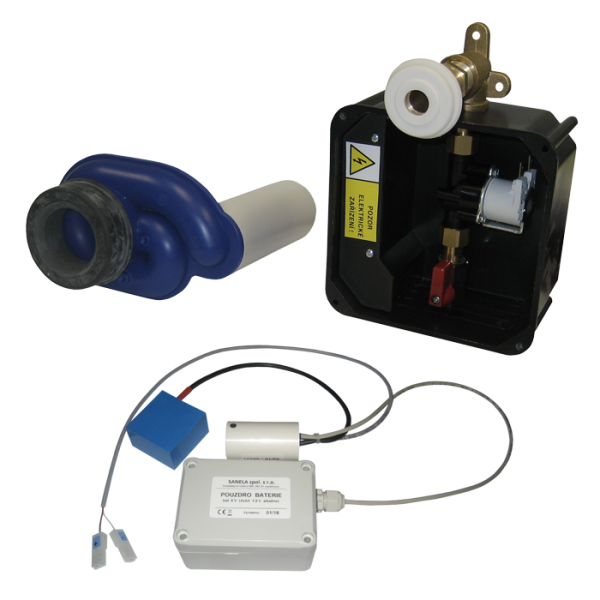

SLP 99RB - supply No. 11997 - radar flushing unit, electromagnetic valve, innlet fitting, set of 4 pcs. of alcaline batteries
Technical information
Dimension of mounting box: 140 x 140 x 75 mm
Operating voltage: 6V
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 3/4“
Water outlet: inlet fitting with a rubber seal
Operating voltage: 6V
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 3/4“
Water outlet: inlet fitting with a rubber seal
Accessories
