SLP 99R

Urinal radar flushing unit made to order, 24V DC

Characteristics

  • system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid (urine) is flowing through)
  • adjustable flushing time from 0,5 to 15,5 sec.
  • adjustable minimum use time (min. time of urinal direct using) from 6 to 15 sec.
  • parameters adjustment by SLD 04 remote control (without the necessity to dismantle the urinal from the wall)
  • automatic flushing after each 6 hours non-use
  • possibility to regulate a water flow by the angle valve
  • radar flushing unit recharges a water to the siphon after each flushing
  • TYPE OF URINAL MUST BE MENTIONED IN THE ORDER!
  • Order number: 01994
I am interested in more information:

Supply specification

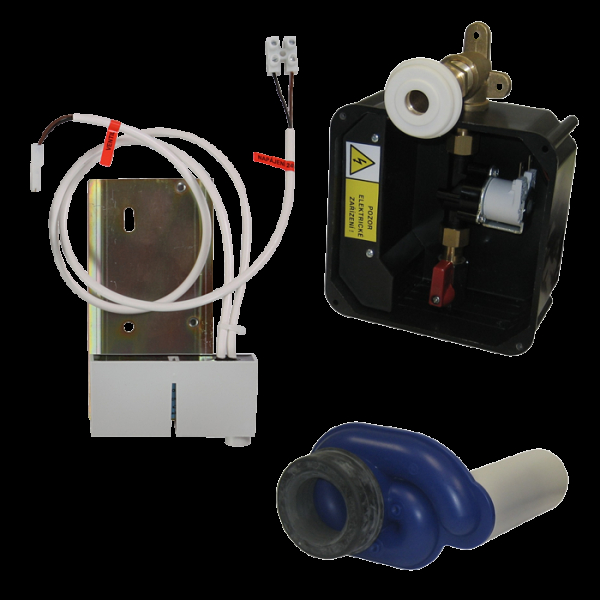

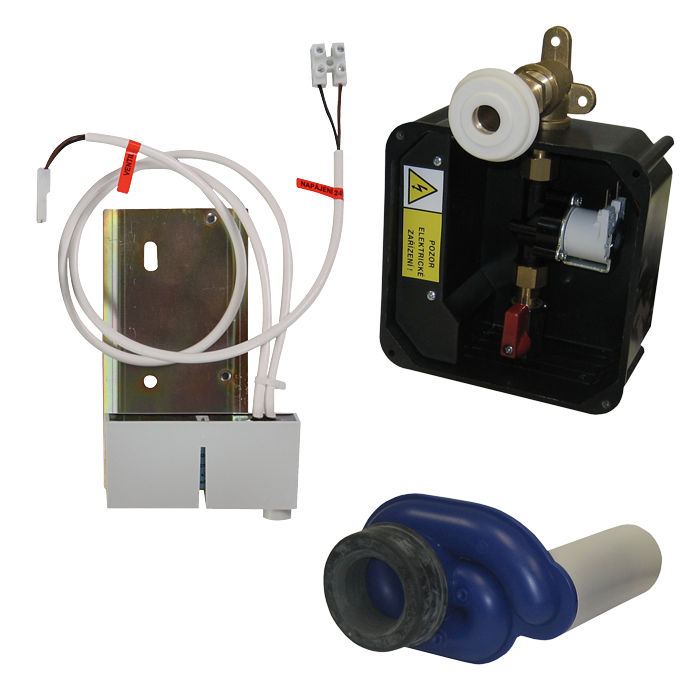

SLP 99R - supply No. 01994 - radar flushing unit, electromagnetic valve, innlet fitting

Technical information

Dimension of mounting box: 140 x 140 x 75 mm
Operating voltage: 24V DC
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 3/4“
Water outlet: inlet fitting with a rubber seal

Accessories

Remote control for an adjustment of…
External power supply 230 V AC/24 V DC,…
External power supply 230 V AC/24 V DC,…
External power supply 24 V DC for…
External power supply 24 V DC for…
External power supply 24 V DC for…
The display of the products on the website is for information only. The producer reserves the right to make technical changes or parameters. The producer makes every effort to keep the information published here as up-to-date as possible, but does not guarantee that all data is accurate and current at the time.
