SLP 99 CONNECT E567601

Radar flushing unit for urinal CONNECT E567601

Characteristics

  • DESIGNED FOR URINAL CONNECT (Ideal Standard) E567601
  • includes Bluetooth control (Sanela Control app available for download)

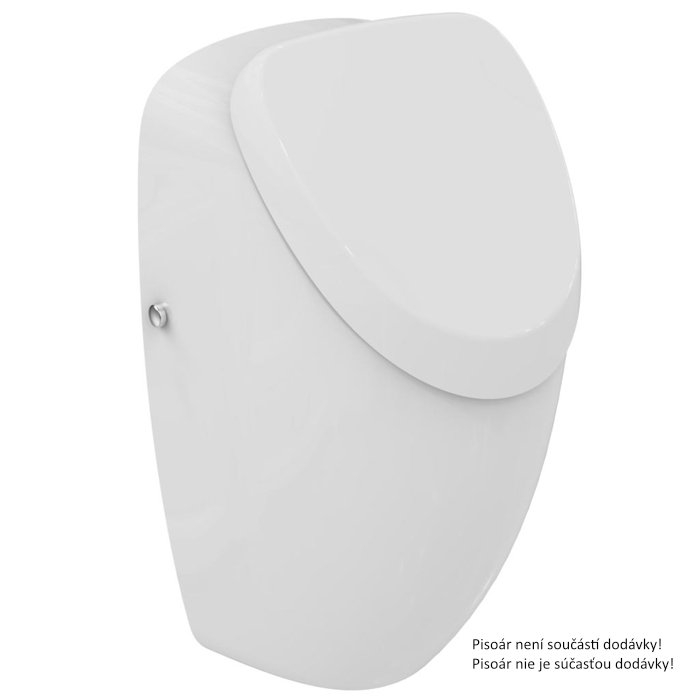

  • THE URINAL DOES NOT HAVE TO BE SENT FOR ASSEMBLY (THE RADAR SENSOR IS SUPPLIED SEPARATELY)
  • SLP 99S - 24 V DC, pre-wall mounting (water supply with flexi hoses)
  • SLP 99Z - 230 V AC, including power supply unit
  • SLP 99B - 6 V, including housing with 4 pc AA batteries
  • easy installation by the help of paper drill template
  • economy flushing by 1 liter of water
  • whole flushing unit is placed behind the urinal
  • system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
  • adjustable flushing time 0,5 - 15,5 s
  • parameter setting and communication with the electronics via the Sanela Control app (Bluetooth) or the SLD 04 remote control (acoustic indication of setting) without dismantling the urinal
  • automatic flushing after each 6 hours non-use
  • possibility to regulate a water flow by the angle valve
  • radar flushing unit recharges a water to the siphon after each flushing
I am interested in more information:
Contact us

Supply specification

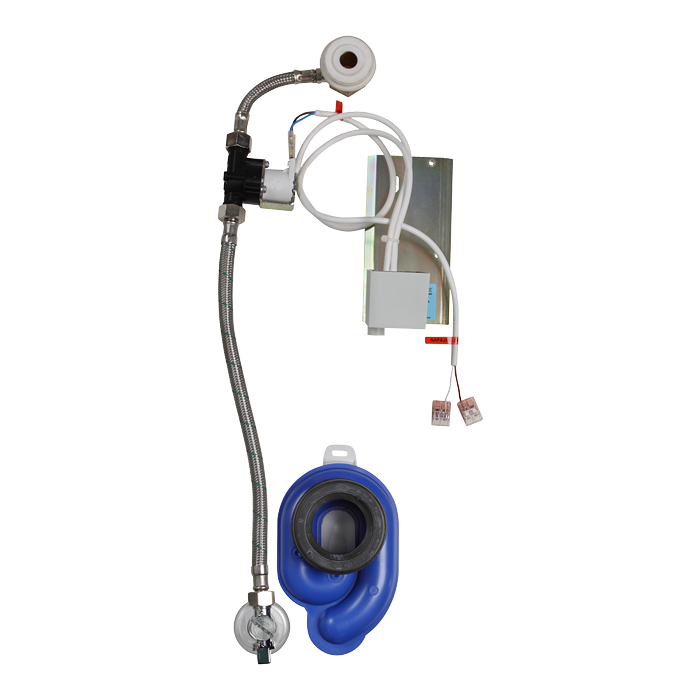

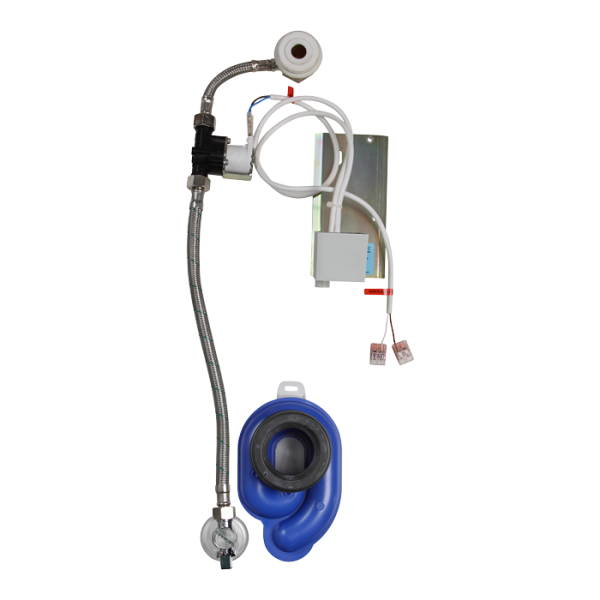

SLP 99S - Supply No. 21992 - radar flushing unit including Bluetooth module on the mounting rail, electromagnetic valve, connecting hoses, angle valve, inlet fitting with a rubber sealing, siphon, paper drill template

SLP 99Z - Supply No. 21994 - radar flushing unit including Bluetooth module on the mounting rail, electromagnetic valve, connecting hoses, angle valve, inlet fitting with a rubber sealing, siphon, paper drill template, power supply

SLP 99B - Supply No. 21996 - radar flushing unit including Bluetooth module on the mounting rail, electromagnetic valve, connecting hoses, angle valve, inlet fitting with a rubber sealing, siphon, paper drill template, 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh with battery case

Technical information

Operating voltage: SLP 99S - 24 V DC

 SLP 99Z - 230 V AC/50 Hz

 SLP 99B - 6 V
Power input: operating by 24 V DC - 8 W

 operating by 6 V - 3 W
Recommended flow pressure:
 0,1 - 0,6 MPa
Rate of flow:
 18 l/min (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fitting with a rubber sealing
