SLP 99 Ball ORBL
Radar flushing unit for urinal Ball ORBL
Characteristics

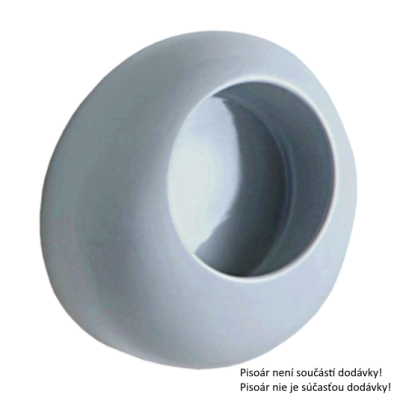

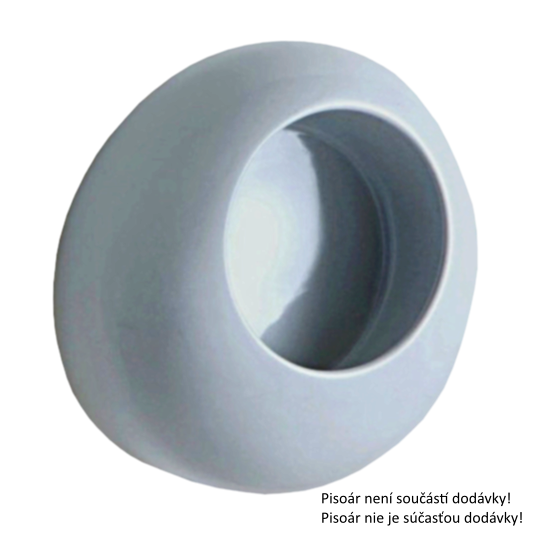

- DESIGNED FOR URINAL BALL (Cielo) ORBL
- includes Bluetooth control (paid Sanela control app available for download)
- THE URINAL DOES NOT HAVE TO BE SENT FOR ASSEMBLY (THE RADAR SENSOR IS SUPPLIED SEPARATELY)
- SLP 99S - 24 V DC, pre-wall mounting (water supply with flexi hoses)
- SLP 99Z - 230 V AC, including power supply unit
- SLP 99B - 6 V, including housing with 4 pc AA batteries
- economy flushing by 1 liter of water
- whole flushing unit is placed behind the urinal
- system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
- adjustable flushing time 0,5 - 15,5 s
- parameter setting and communication with the electronics via the Sanela Control app (Bluetooth) or the SLD 04 remote control (acoustic indication of setting) without dismantling the urinal
- automatic flushing after each 6 hours non-use
- possibility to regulate a water flow by the angle valve
- radar flushing unit recharges a water to the siphon after each flushing
I am interested in more information:
Supply specification

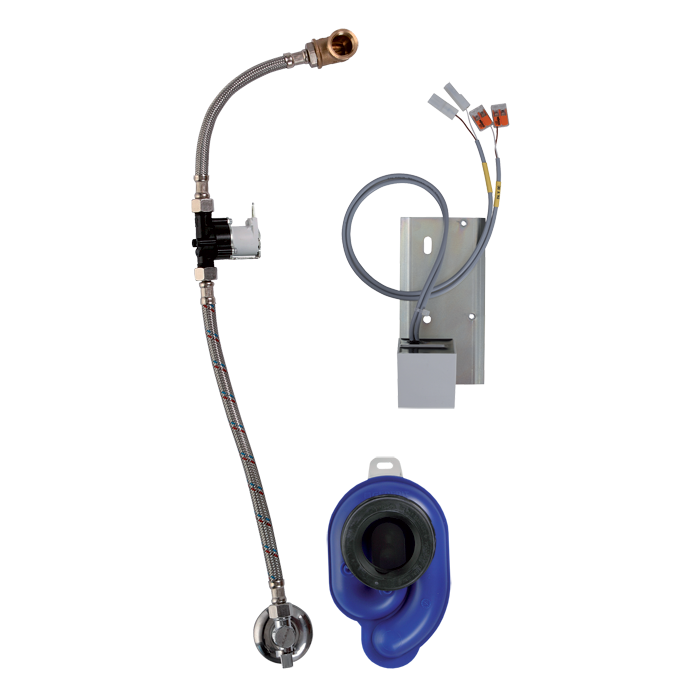

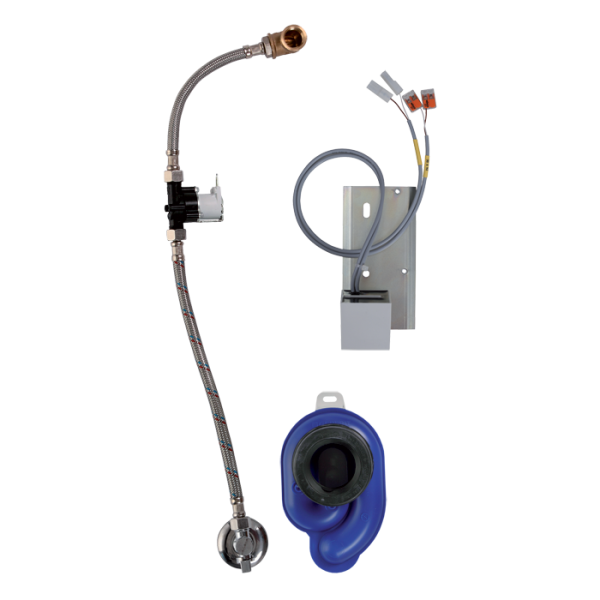

SLP 99S - Supply No. 21992 - radar flushing unit including Bluetooth module on the mounting rail, electromagnetic valve, connecting hoses, angle valve, siphon
SLP 99Z - Supply No. 21994 - radar flushing unit including Bluetooth module on the mounting rail, electromagnetic valve, connecting hoses, angle valve, siphon, power supply
SLP 99B - Supply No. 21996 - radar flushing unit including Bluetooth module on the mounting rail, electromagnetic valve, connecting hoses, angle valve, siphon, 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh with battery case
Technical information
Operating voltage: | SLP 99S - 24 V DC |
SLP 99Z - 230 V AC/50 Hz | |
SLP 99B - 6 V | |
Recommended flow pressure: | 0,1 - 0,6 MPa |
Rate of flow: | 12 l/min (inf. data) |
Water inlet: | male thread G 1/2“ |
Water outlet: | female thread G 1/2“ |
Downloads
- Catalogue list (429.76 kB)
- Mounting diagram (333.93 kB)
