SLP 99 APP AP28G

Radar flushing unit for urinal APP AP28G

Characteristics

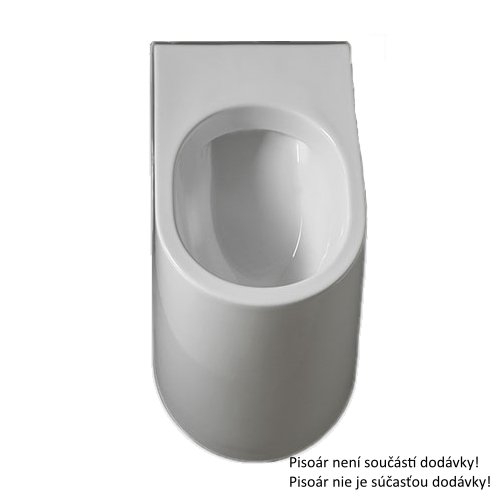

  • DESIGNED FOR URINAL APP (Flaminia) AP28G
  • includes Bluetooth control (Sanela Control app available for download)
  • THE URINAL DOES NOT HAVE TO BE SENT FOR ASSEMBLY
  • SLP 99S - 24 V DC, the product includes a installation box with outlet fitting, it must be embedded in the wall in the space behind the urinal
  • SLP 99Z - 230 V AC, including power supply unit
  • economy flushing by 1 liter of water
  • whole flushing unit is placed behind the urinal
  • system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
  • adjustable flushing time 0,5 - 15,5 s
  • parameter setting and communication with the electronics via the Sanela Control app (Bluetooth) or the SLD 04 remote control (acoustic indication of setting) without dismantling the urinal
  • automatic flushing after each 6 hours non-use
  • possibility to regulate a water flow by the ball valve
  • radar flushing unit recharges a water to the siphon after each flushing
I am interested in more information:

Supply specification

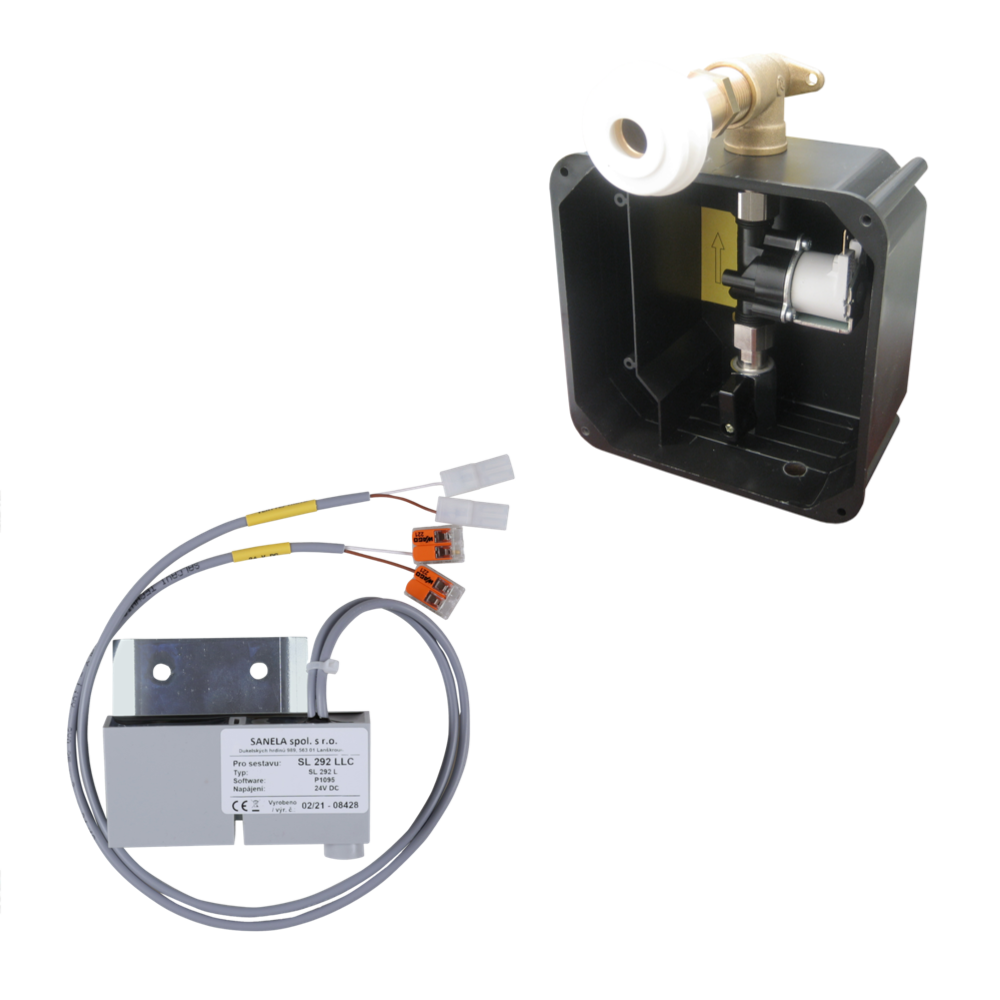

SLP 99S - Supply No. 21992 - radar flushing unit including Bluetooth module on the mounting rail, mounting box with brass screw coupling, electromagnetic valve and ball valve, inlet fitting with a rubber sealing

SLP 99Z - Supply No. 21994 - radar flushing unit including Bluetooth module on the mounting rail, mounting box with brass screw coupling, electromagnetic valve and ball valve, inlet fitting with a rubber sealing, power supply

Technical information

Operating voltage: SLP 99S - 24 V DC
  SLP 99Z - 230 V AC/50 Hz
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fitting with a rubber sealing
