SLP 99 Alice Form 22260101
Radar flushing unit for urinal Alice Form 22260101
Characteristics

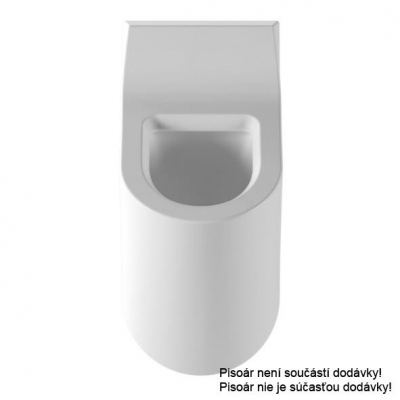

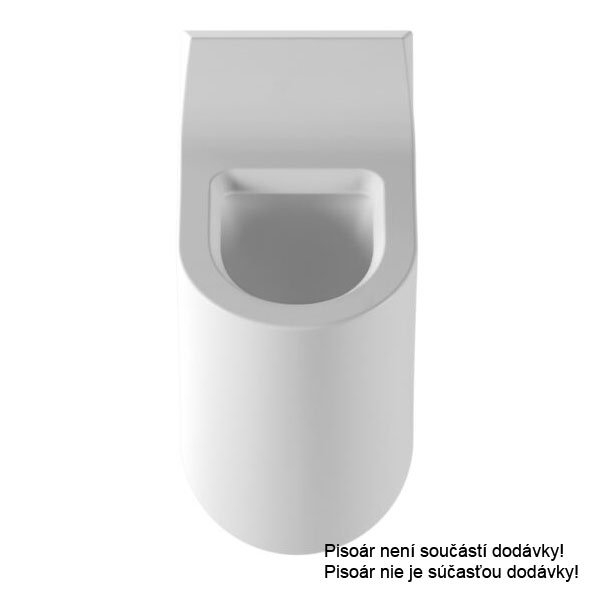

- DESIGNED FOR URINAL FORM (Alice) 22260101
- includes Bluetooth control (paid Sanela control app available for download)
- THE URINAL DOES NOT HAVE TO BE SENT FOR ASSEMBLY (THE RADAR SENSOR IS SUPPLIED SEPARATELY)
- SLP 99S - 24 V DC, pre-wall mounting (water supply with flexi hoses)
- SLP 99Z - 230 V AC, including power supply unit
- SLP 99B - 6 V, including housing with 4 pc AA batteries
- economy flushing by 1 liter of water
- whole flushing unit is placed behind the urinal
- system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
- adjustable flushing time 0,5 - 15,5 s
- parameter setting and communication with the electronics via the Sanela Control app (Bluetooth) or the SLD 04 remote control (acoustic indication of setting) without dismantling the urinal
- automatic flushing after each 6 hours non-use
- possibility to regulate a water flow by the angle valve
- radar flushing unit recharges a water to the siphon after each flushing
I am interested in more information:
Supply specification

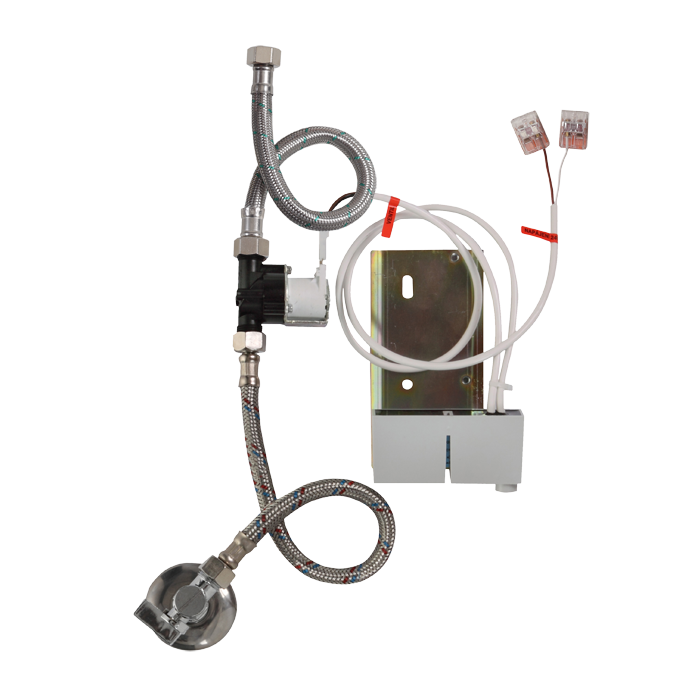

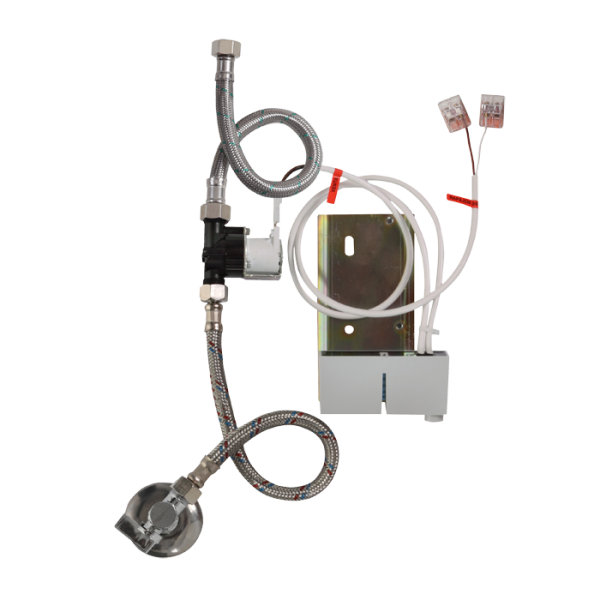

SLP 99S - Supply No. 21992 - radar flushing unit including Bluetooth module on the mounting rail, solenoid valve, coupling hoses, angle valve, siphon
SLP 99Z - Supply No. 21994 - radar flushing unit including Bluetooth module on the mounting rail, solenoid valve, coupling hoses, angle valve, siphon, power supply
SLP 99B - Supply No. 21996 - radar flushing unit including Bluetooth module on the mounting rail, solenoid valve, coupling hoses, angle valve, siphon, 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh with battery case
Technical information
Operating voltage: | SLP 99S - 24 V DC |
SLP 99Z - 230 V AC/50 Hz | |
SLP 99B - 6 V | |
Recommended flow pressure: | 0,1 - 0,6 MPa |
Rate of flow: | 18 l/min (inf. data) |
Water inlet: | male thread G 1/2“ |
Water outlet: | female thread G 1/2“ |
Downloads
- Catalogue list (382.65 kB)
- Mounting diagram (389.46 kB)
Accessories
The display of the products on the website is for information only. The producer reserves the right to make technical changes or parameters. The producer makes every effort to keep the information published here as up-to-date as possible, but does not guarantee that all data is accurate and current at the time.
