SLP 17

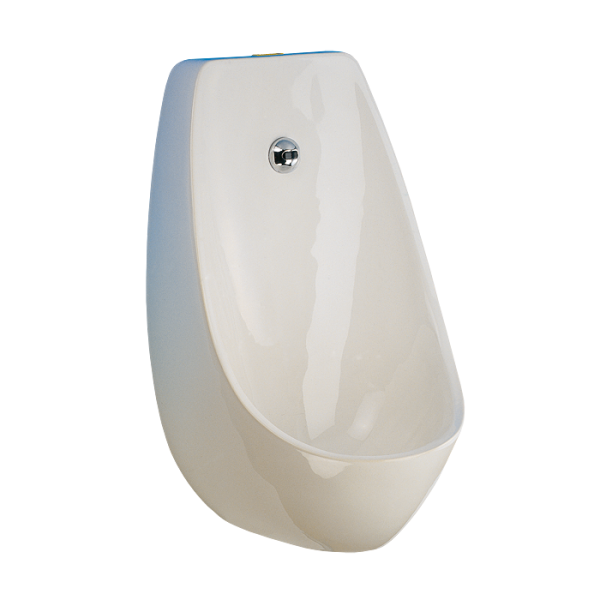

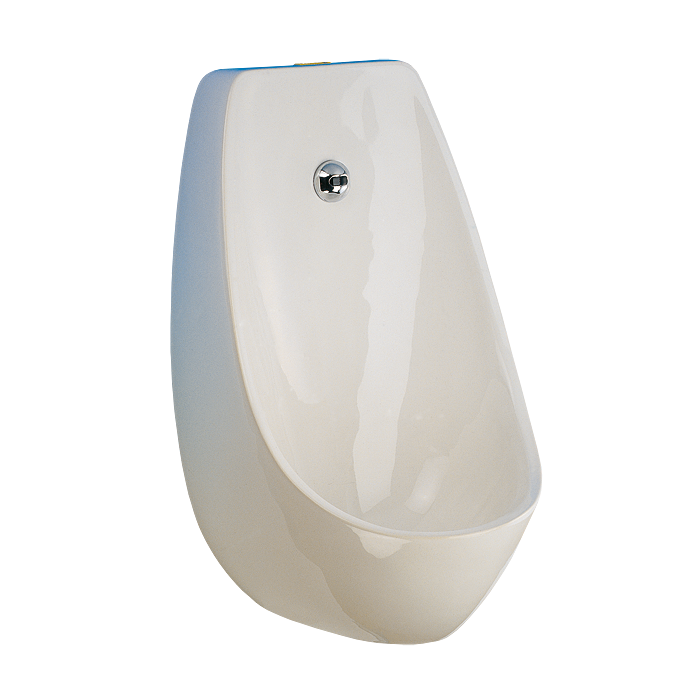

Urinal Domino with infra-red flushing unit, 24 V DC

Characteristics

  • system reacts to the user attendance in front of the urinal at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 s
  • water flows after the user leaves active range
  • adjustable flushing time 0,5 - 15,5 s
  • parameters adjustment by remote control SLD 03
  • automatic hygiene flushing after 24 hours non-use



  • Order number: 01170

Supply specification

SLP 17 - Supply No. 01170 - ceramic urinal, flushing head with electronics, electromagnetic valve, angle valve, connecting hoses, mounting set

Technical information

power supply: 24V DC
flushing unit: urinal included
control: infra-red
Operating voltage: 24 V DC
Active range: 0,6 - 0,75 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 1/2“
Water outlet: flushing head
