SLP 02PBA
Urinal flusher, piezo-controlled
New product
Characteristics
- vandal-proof design
- use for prisons

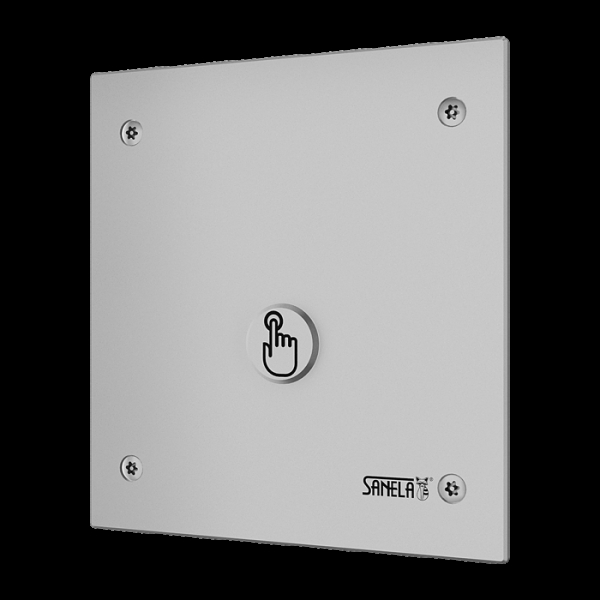

- special anti-vandal stainless steel cover, thickness 3 mm
- responds to gentle pressing of the piezo button with immediate flushing
- flush time is adjustable from 0.5 to 15.5 s, company setting 4 s
- parameter setting using remote control SLD 04
- sanitary flush after 24 hours from the last activation of the valve
- battery status monitoring
- possibility to regulate water flow with a ball valve
- brushed finish
- Order number: 21023
- EAN: 8591385210235
I am interested in more information:
Supply specification
SLP 02PBA - Supply No. 21023 - stainless steel cover with piezo button and electonic plastic mounting box with screw connection, electromagnetic valve and ball valve, 4x torx screw, 4 pcs. AA alkaline batteries 1.5 V 2700 mAh
Technical information
| Stainless steel cover dimensions: | 160 x 170 x 3 mm |
| Mounting box dimensions: | 140 x 140 x 75 mm |
| Supply voltage: | 6 V |
| Recommended working pressure: | 0,1 - 0,6 MPa |
| Flow rate: | 18 l/min (informative value) |
| Water inlet: | external thread G 3/4“ |
| Water outlet: | external thread G 3/4“ |
Downloads
- Mounting instructions (1.75 MB)
- Catalogue list (156.92 kB)
- 2D Drawing (228.17 kB)
