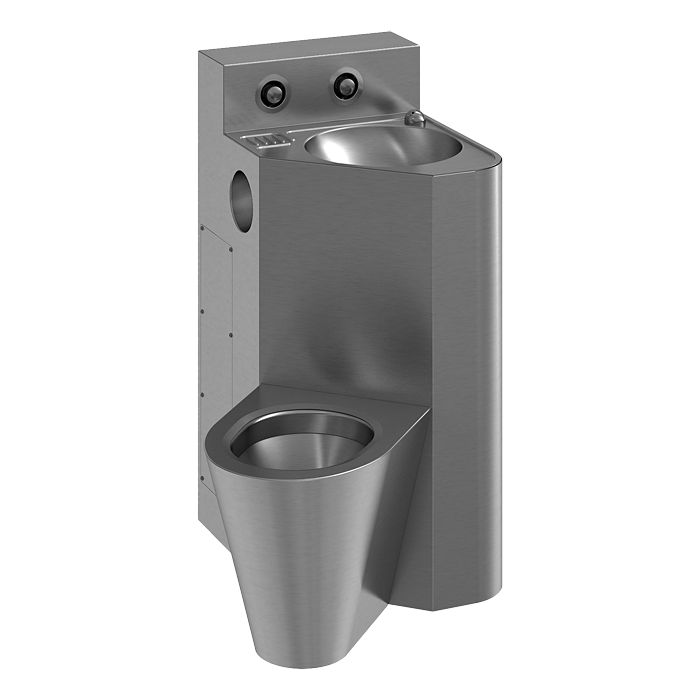

SLWN 18ZL
Vandal-proof corner combination unit, hanging toilet on the left side
Characteristics
- vandal-proof
- suitable for prison
- corner combination with toilet, washbasin, washbasin spout and a toilet paper hole
- push button washbasin spout
- push button for toilet flushing
- SLWN 18ZL - hanging toilet on the left side
- filled with expanded polyurethane (to avoid dents and typical metal noise)
- rear assembling through the service hatch
- material AISI - 304
- brushed finish
- Order number: 94183
I am interested in more information:
Supply specification
SLWN 18ZL - Supply No. 94183 - stainless steel combination unit with toilet and washbasin, push button (2 pcs.), washbasin spout, mounting set, set for connection
Technical information
| Combi unit type: | corner |
| Toilet type: | hanging |
| Installation: | wall hung |
| Category: | combination unit |
| Recommended flow pressure: | 0,15 - 0,5 MPa |
| Rate of flow: | 70 l/min. by the pressure 0,15 MPa (inf. data) |
| Water inlet: | WC - Ø min. 32 mm (PN 16) male thread G 3/4“ |
| washbasin - male thread G 1/2“ |
Downloads
- Mounting instructions (874 kB)
- Catalogue list (185.77 kB)
