SLWN 08ZL

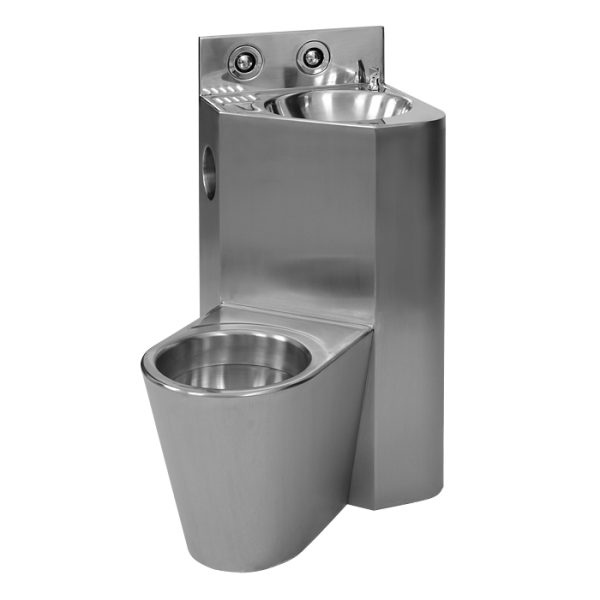

Vandal-proof corner combination unit, hanging toilet on the left side

Characteristics

  • vandal-proof
  • suitable for prison
  • corner combination with toilet, washbasin, washbasin spout and a toilet paper hole
  • push button for washbasin spout
  • push button for toilet flushing
  • SLWN 08ZL - hanging toilet on the left side
  • filled with expanded polyurethane (to avoid dents and typical metal noise)
  • rear assembling by screws (M10, length 190 mm), from the service room
  • material AISI - 304
  • brushed finish
  • Order number: 94083
I am interested in more information:

Supply specification

SLWN 08ZL - Supply No. 94083 - stainless steel combination unit with toilet and washbasin, push button (2 pcs.), washbasin spout, screws M10 (6 pcs.), set for connection

Technical information

Combi unit type: corner
Toilet type: hanging
Installation: from the service room (M10 screws)
Category: combination unit
Recommended flow pressure: 0,15 - 0,5 MPa
Rate of flow: 70 l/min. by the pressure 0,15 MPa (inf. data)
Water inlet: WC - male thread G 3/4“
  washbasin - male thread G 1/2“

Downloads
