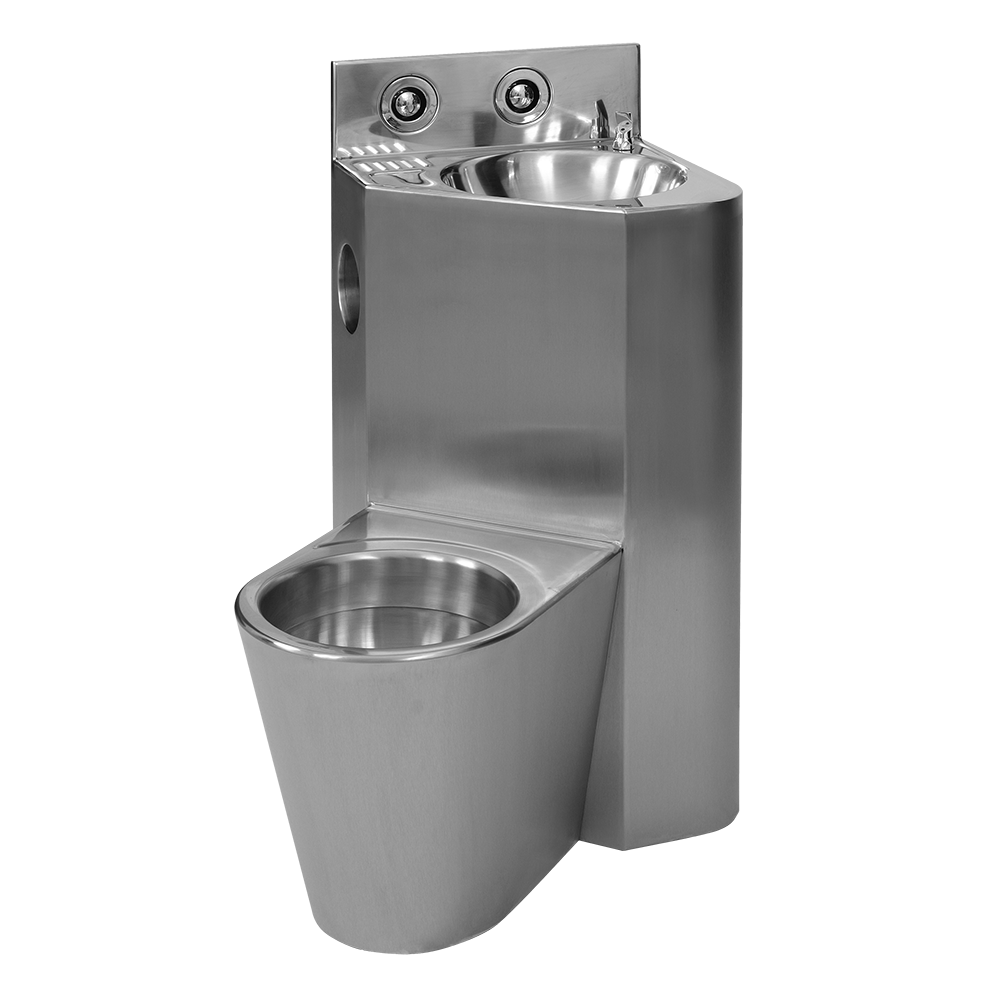

SLWN 08L
Vandal-proof corner combination unit, floor standing toilet on the left side
Characteristics
- vandal-proof
- suitable for prison
- corner combination with toilet, washbasin and washbasin spout
- push button for washbasin spout
- push button for toilet flushing
- SLWN 08L - floor standing toilet on the left side
- filled with expanded polyurethane (to avoid dents and typical metal noise)
- rear assembling by screws (M10, length 190 mm), from the service room
- material AISI - 304
- brushed finish
- Order number: 94081
I am interested in more information:
Supply specification
SLWN 08L - Supply No. 94081 - stainless steel combination unit with toilet and washbasin, push button (2 pcs.), washbasin spout, screws M10 (6 pcs.), set for connection
Technical information
| Installation: | from the service room (M10 screws) |
| Combi unit type: | corner |
| Toilet type: | standing |
| Category: | combination unit |
| Recommended flow pressure: | 0,15 - 0,5 MPa |
| Rate of flow: | 70 l/min. by the pressure 0,15 MPa (inf. data) |
| Water inlet: | WC - Ø min. 32 mm (PN 16) male thread G 3/4“ |
| washbasin - male thread G 1/2“ |
Downloads
- Mounting instructions (2.45 MB)
- Catalogue list (227.08 kB)
- 2D Drawing (187.77 kB)
