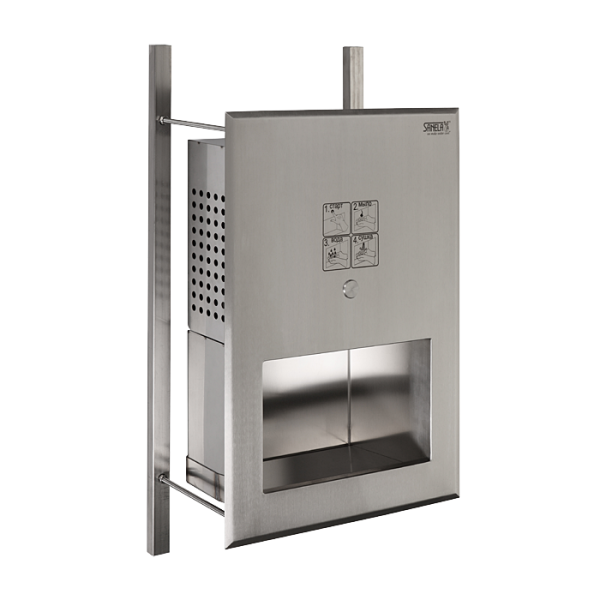

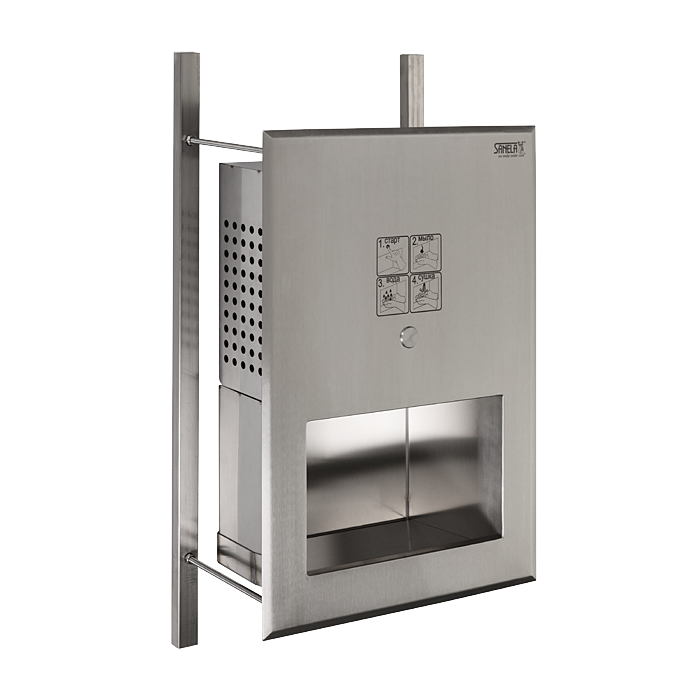

SLUN 70H
Vandal-proof stainless steel piezo multifunctional washbasin, 230 V AC
Characteristics
- hygienic flush
- vandal-proof
- suitable for prison
- stainless steel recessed multiple washbasin with integrated piezo electronics for soap dispenser, water outlet and hand dryer in one
- rear assembling by screws (M10, length 190 mm) from the service room
- water flows after soft push of the piezo button
- liquid soap refilling from the service room
- parameter adjustment using by the remote control SLD 07
- material AISI - 304
- brushed finish
- Order number: 73701
I am interested in more information:
Supply specification
SLUN 70H - Supply No. 73701 - stainless steel multiple washbasin with piezo electronics, integrated soap dispenser, water outlet and hand dryer, siphon, mounting set, flexible cabel with plug for wall socket 230 V/50 Hz
Technical information
| Installation: | from the service room (M10 screws) |
| Temperature regulation: | for cold or premixed water |
| Category: | washbasin |
| Control: | piezo |
| Operating voltage: | 230 V AC/50 Hz |
| Recommended flow pressure: | 0,1 - 0,6 МPa |
| Water flow: | 6 l/min. (inf. data) |
| Water inlet: | male thread G 1/2“ |
Downloads
- Mounting instructions (3.45 MB)
- Catalogue list (496.15 kB)
- 2D Drawing (760.99 kB)
