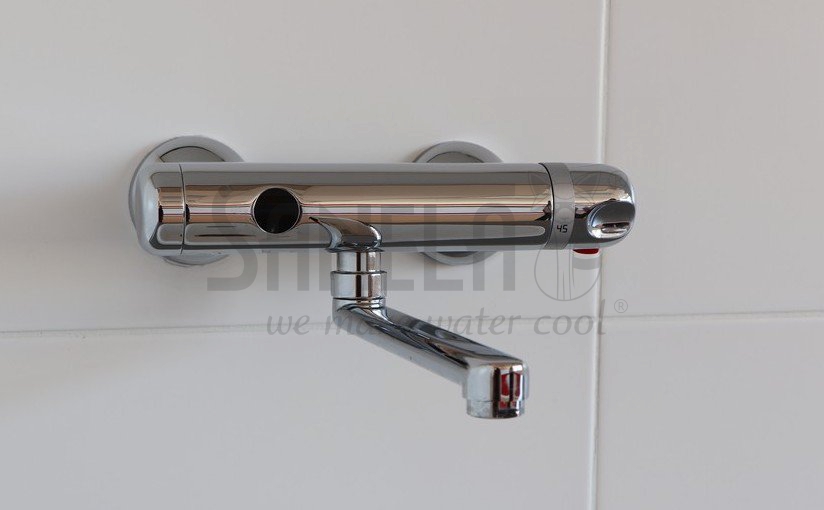

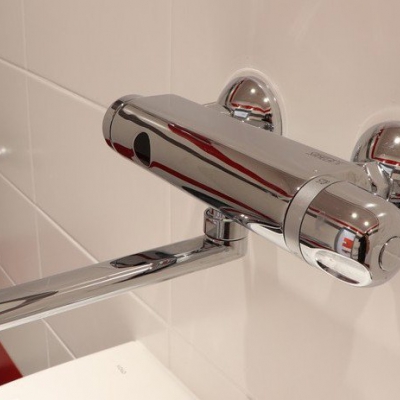

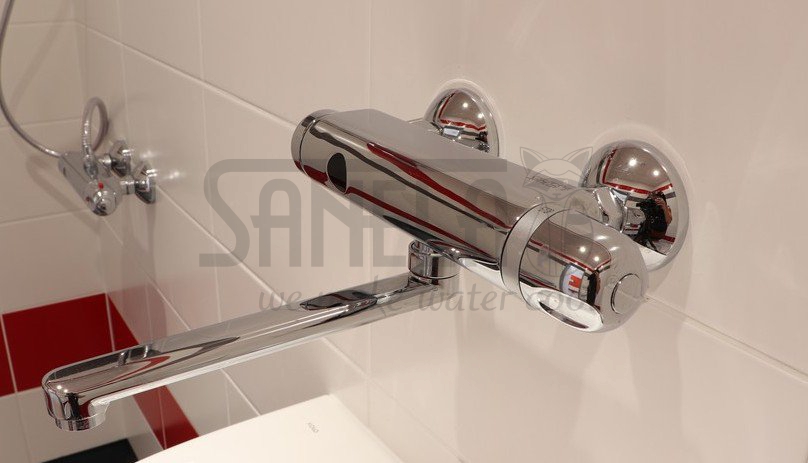

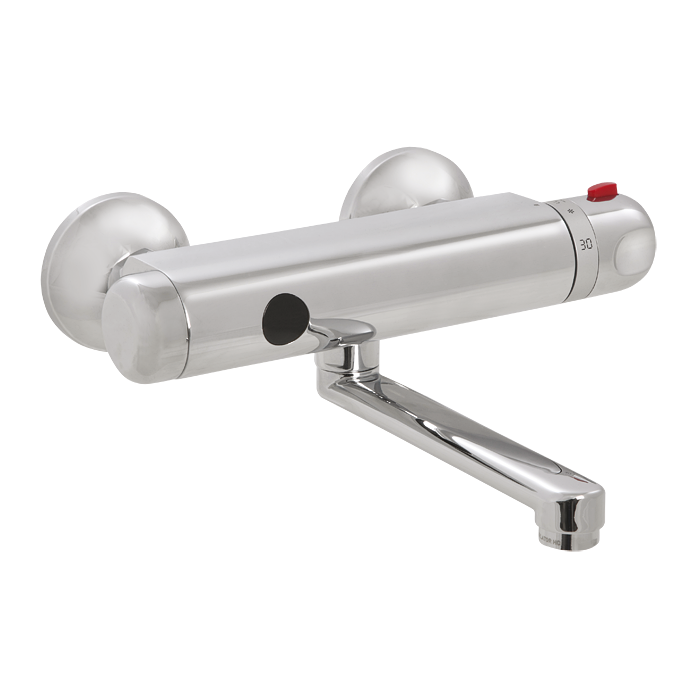

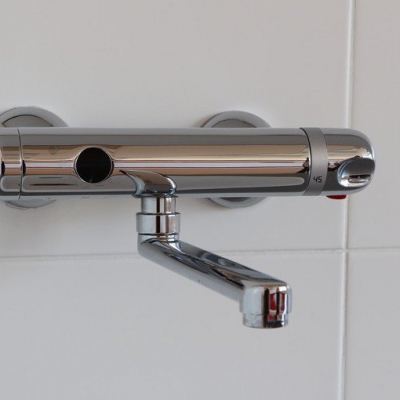

SLU 25SB
Wall-mounted thermostatic mixer, 9 V
Characteristics
- economical aerator, rate of flow 6 l/min
- hygienic flush
- suitable for medical facilities
- swivel faucet
- is destined for cold and hot water, temperature is regulated by thermostatic mixer
- safety fuse against scalding
- stop flowing of hot water till 1 s in case of cold water failure
- pressure of hot and cold water must be same
- water is flowing as long as person is in the active range
- water stops flowing after removal of person from the active range of sensor after adjustable time delay (can be set in range 0,25 – 7,75 s)
- function of automatic water stop after 5 minut of continuous flow
- monitoring of battery capacity
- START/STOP program
- parameter adjustment using by the remote control SLD 03
- Order number: 33259
I am interested in more information:
Supply specification
SLU 25SB - Supply No. 33259 - faucet with a spout, electronics, thermostat and electromagnetic valve, rosette (2 pcs.), chrome cover (2 pcs.), filter (2 pcs.), Allen key, lithium battery SLA 09
Technical information
| Material: | chrome |
| Temperature regulation: | with thermostat |
| Power supply: | battery operated |
| Control: | infra-red |
| SLU 25SB: | water inlet spacing 150 mm |
| Operating voltage: | 9 V |
| Battery life: | lithium 9 V, type U9VL (approx. 2 years (100 uses per day) |
| Active range: | standard 0,6 - 0,75 m, START/STOP program 0,05 - 0,15 m |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 6 l/min. (inf. data) |
| Water inlet: | male thread G 1/2“ |
Downloads
- Mounting instructions (2 MB)
- Catalogue list (167.68 kB)
- 2D Drawing (183.2 kB)
