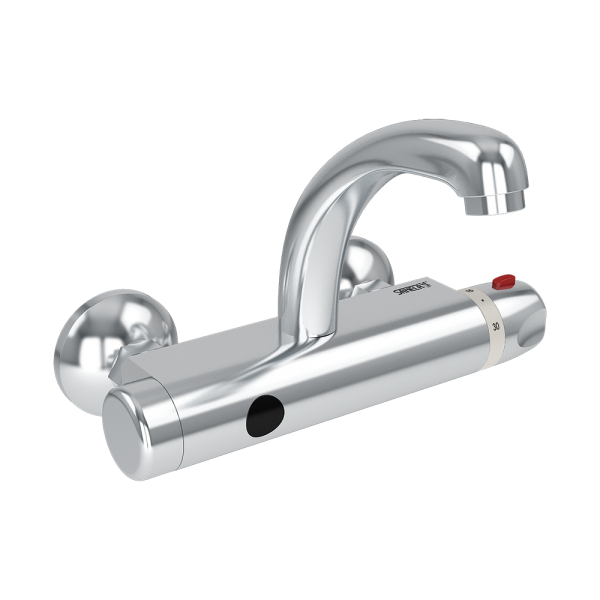

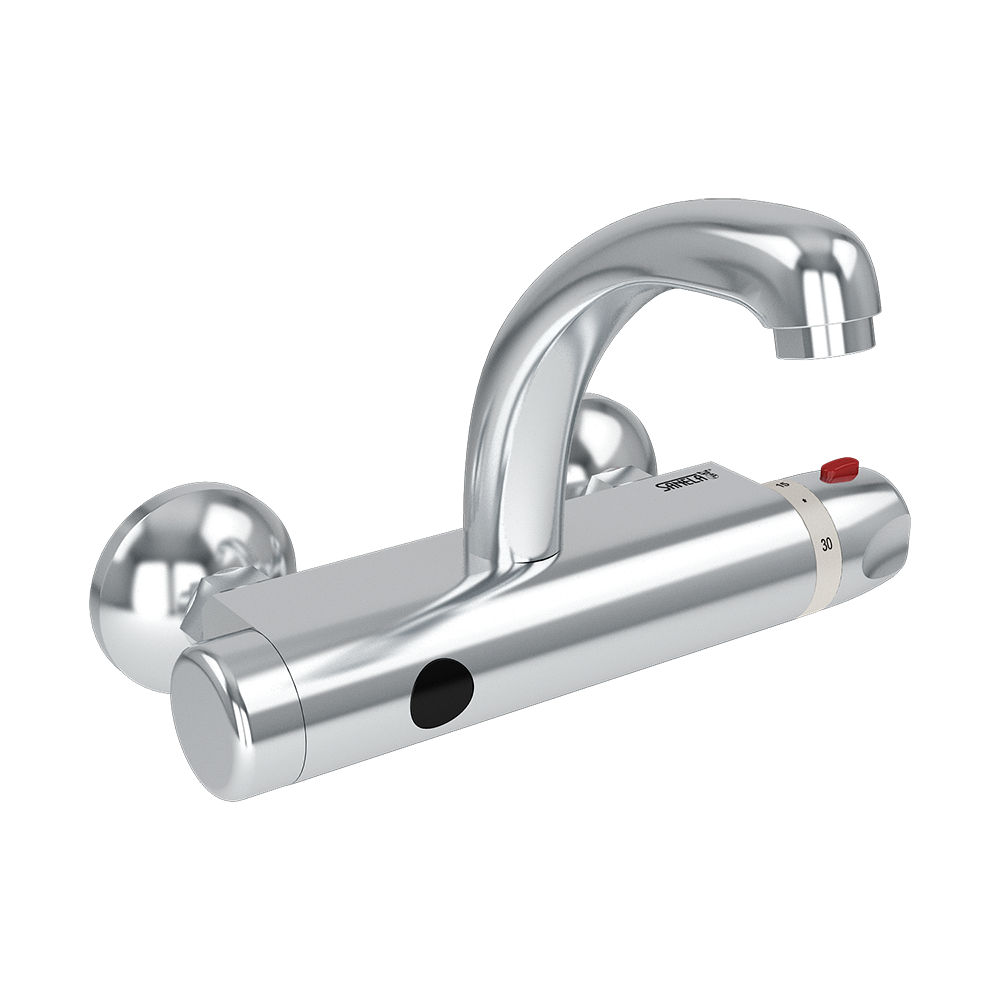

SLU 25B

Wall-mounted thermostatic mixer, water supply span 150 mm, 9 V

Characteristics

  • economical aerator, rate of flow 6 l/min
  • hygienic flush
  • suitable for medical facilities
  • swivel faucet
  • is destined for cold and hot water, temperature is regulated by thermostatic mixer
  • safety fuse against scalding
  • stop flowing of hot water till 1 s in case of cold water failure
  • pressure of hot and cold water must be same
  • water is flowing as long as hands are in the active range
  • water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 – 7,75 s)
  • function of automatic water stop after 5 minut of continuous flow
  • monitoring of battery capacity
  • START/STOP program
  • parameter adjustment using by the remote control SLD 03
  • Order number: 03255

Supply specification

SLU 25B - Supply No. 03255 - faucet with a spout, electronics, thermostat and electromagnetic valve, rosette (2 pcs.), chrome cover (2 pcs.), filter (2 pcs.), Allen key, lithium battery SLA 09

Technical information

material: chrome
temperature regulation: with thermostat
power supply: battery operated
control: infra-red
SLU 25B: water inlet spacing 150 mm
Operating voltage: 9 V
Battery life: lithium 9 V, type U9VL (approx. 2 years (100 uses per day)
Active range: standard 0,25 - 0,35 m, START/STOP program 0,05 - 0,15 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 1/2“
