SLSN 22

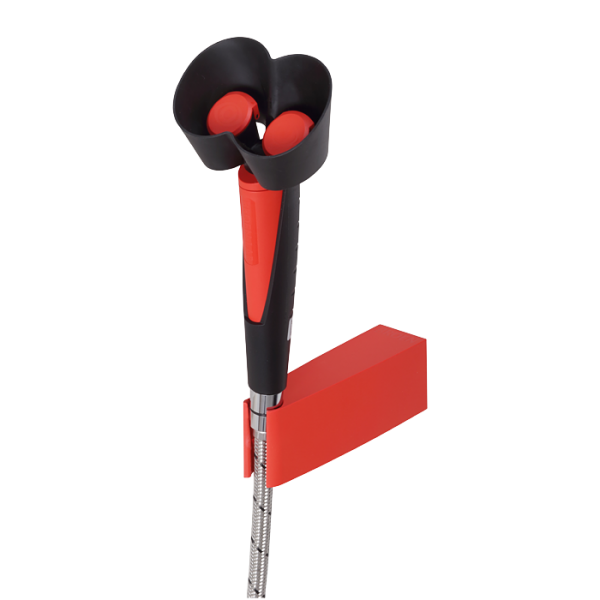

Hand eyes shower with two spray heads with holder on the wall
Characteristics
- suitable for medical facilities and industry
- used as first aid if eyes impacted by accidents caused by fire, chemical or other dangerous substances
- hand-held eyewash shower with two spray heads, head at an angle of 45 degrees with plastic wall holder
- wall mounted
- Order number: 92220
I am interested in more information:
Supply specification
SLSN 22 - Supply No. 92220 - eyewash shower, plastic wall holder, flexi hose (1500 mm)
Technical information
Type: | with two spray heads |
Installation: | wall hung |
Rate of flow: | 14 l/min. (inf. data) |
Water inlet: | 1/2“ flexi hose |
Minimum dynamic pressure: | 0,15 MPa |
Maximum dynamic pressure: | 0,5 MPa |
Downloads
- Mounting instructions (2.54 MB)
- User guide (2.31 MB)
- Catalogue list (139.42 kB)
- 2D Drawing (1.63 MB)
