SLSN 21D

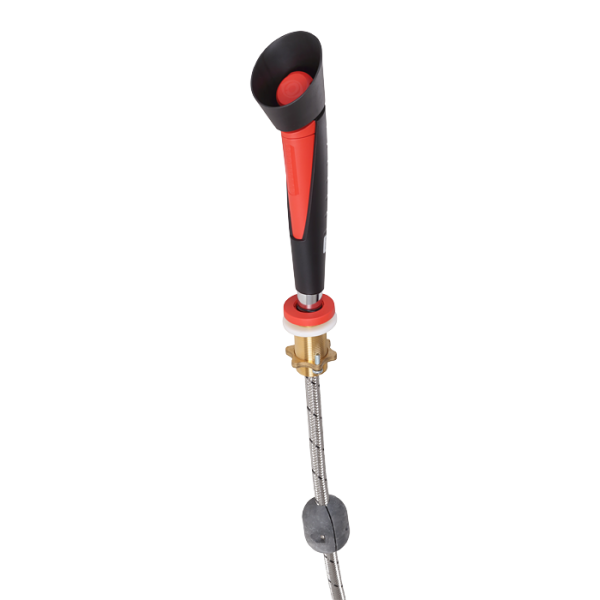

Hand eyes shower with one spray head, rake angle 45°, with a grommet into the desk
Characteristics
- suitable for medical facilities and industry
- used as first aid if eyes impacted by accidents caused by fire, chemical or other dangerous substances
- hand-held eyewash shower with one spray head, head at an angle of 45 degrees with desk holder
- mounting on the desk
- Order number: 92211
I am interested in more information:
Supply specification
SLSN 21D - Supply No. 92211 - eyewash shower, desk holder, flexi hose (1500 mm)
Technical information
| Type: | with one spray head |
| Installation: | wall hung |
| Rate of flow: | 7 l/min. (inf. data) |
| Water inlet: | 1/2“ flexi hose |
| Minimum dynamic pressure: | 0,15 MPa |
| Maximum dynamic pressure: | 0,5 MPa |
Downloads
- Mounting instructions (1.76 MB)
- User guide (2.31 MB)
- Catalogue list (138 kB)
- 2D Drawing (2.08 MB)
