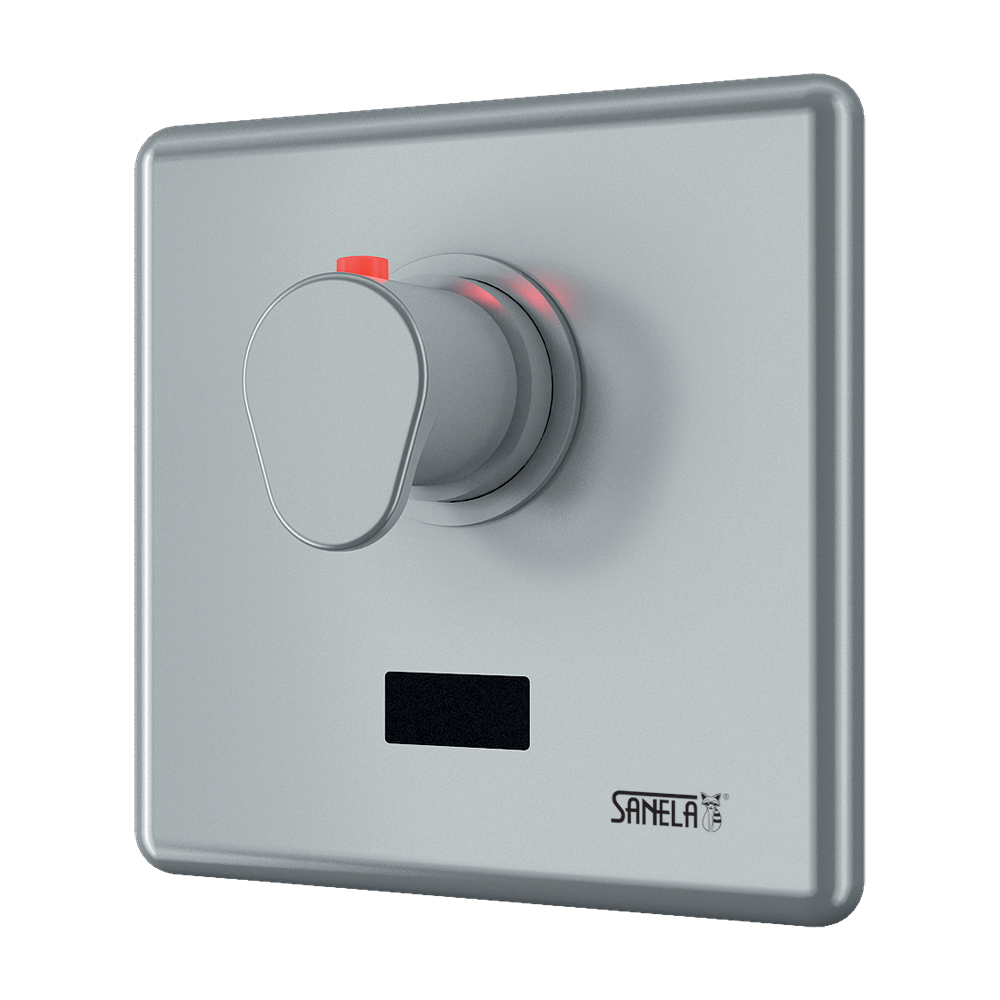

SLS 02TB
Shower control with thermostatic mixer, 6 V
We are sorry, but this product is no longer in our offer. Please, try to choose another from our offer
Characteristics
- hygienic flush
- SLS 02TB are destined for cold and hot water, temperature is regulated by thermostatic mixer
- safety fuse against scalding
- water is flowing as long as an user is in the active range
- water stops flowing after the user leaves the active range sensor after adjustable time delay (can be set in range 0,25 - 7,75 s), standard 2 s
- function of automatic water stop after 5 minut of continuous flow
- monitoring of battery capacity
- START/STOP program
- parameter adjustment using by the remote control SLD 03
- Order number: 02027
I am interested in more information:
Supply specification
SLS 02TB - Supply No. 02027 - stainless steel cover with electronics, stainelss steel mounting box with brass screw coupling, electromagnetic valve, ball valve and thermostatic mixer, 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh
Technical information
| Material: | stainless steel |
| Temperature regulation: | with thermostat |
| Power supply: | battery operated |
| Control: | infra-red |
| Stainless steel cover dimension: | 170 x 170 x 10 mm |
| Mounting box dimension: | 150 x 160 x 65 mm |
| Operating voltage: | 6 V |
| Battery life: | 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh (approx. 2 years (100 uses per day) |
| Active range: | standard 0,27 - 0,35 m, START/STOP program 0,05 - 0,15 m |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 12 l/min. (inf. data) |
| Water inlet: | male thread G 3/4“ |
| Water outlet: | male thread G 3/4“ |
Downloads
- Mounting instructions (4.35 MB)
- Catalogue list (403.73 kB)
- 2D Drawing (352.35 kB)
Accessories
The display of the products on the website is for information only. The producer reserves the right to make technical changes or parameters. The producer makes every effort to keep the information published here as up-to-date as possible, but does not guarantee that all data is accurate and current at the time.
