SLPN 03EB

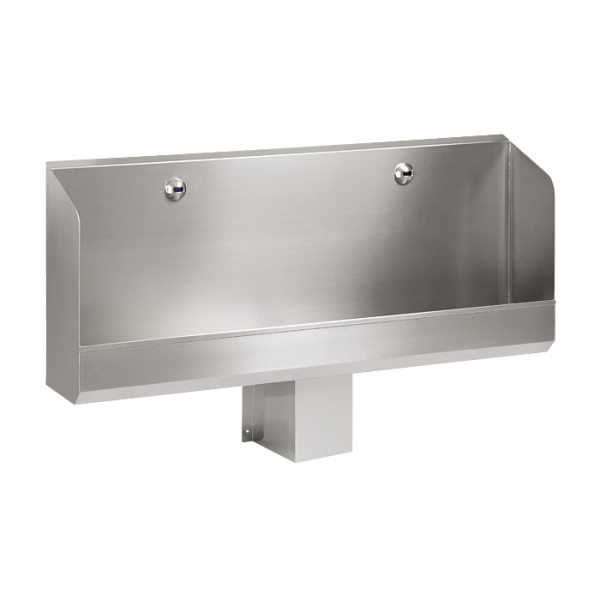

Stainless steel urinal trough with 2 integrated infra-red flushing units, 6 V
Characteristics
- vandal-proof
- stainless steel wall hung urinal trough with integrated infra-red electronics
- every flushing unit reacts independently to the user attendance in front of the urinal at a maximum distance max. 0,7 m, minimum stay time in active range is 7,5 s
- adjustable flushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 03
- automatic hygiene flushing after 24 hours non-use
- monitoring of battery capacity
- different lenghts could be made to order
- material AISI - 304
- brushed finish
- Order number: 91037
I am interested in more information:
Supply specification
SLPN 03EB - Supply No. 91037 - stainless steel urinal trough 1200 mm with flushing head and electronics (2 pcs.), electromagnetic valve (2 pcs.), angle valve with a filter, mounting set, cover for siphon, siphon, 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh with battery case (2 pcs.)
Technical information
Trough type: | wall hung |
Category: | urinal trough |
Power supply: | battery operated |
Control: | infra-red |
Operating voltage: | 6 V |
Battery life: | 4 pcs. AA alkaline batteries AA, 1,5 V, 2700 mAh (approx. 2 years 100 uses per day) |
Active range: | 0,6 - 0,75 m |
Recommended flow pressure: | 0,1 - 0,6 MPa |
Rate of flow: | 12 l/min. by the pressure 0,3 MPa for 1 flushing head (inf. data) |
Water inlet: | male thread G 1/2“ |
Downloads
- Mounting instructions (2.93 MB)
- Catalogue list (252.33 kB)
- 2D Drawing (266.41 kB)
The display of the products on the website is for information only. The producer reserves the right to make technical changes or parameters. The producer makes every effort to keep the information published here as up-to-date as possible, but does not guarantee that all data is accurate and current at the time.
