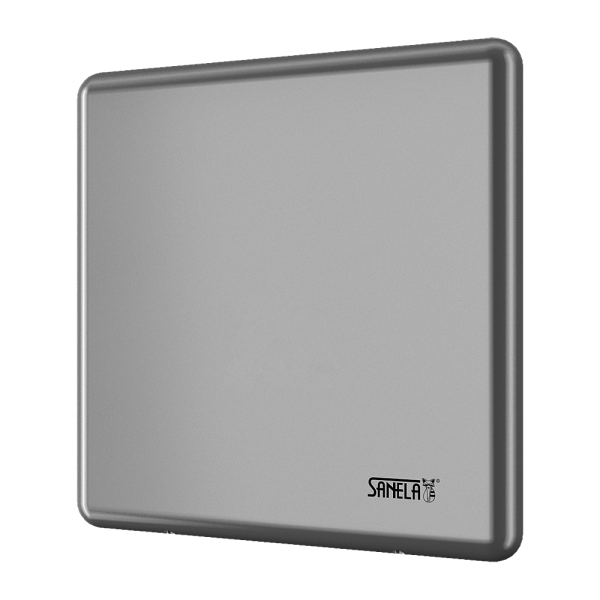

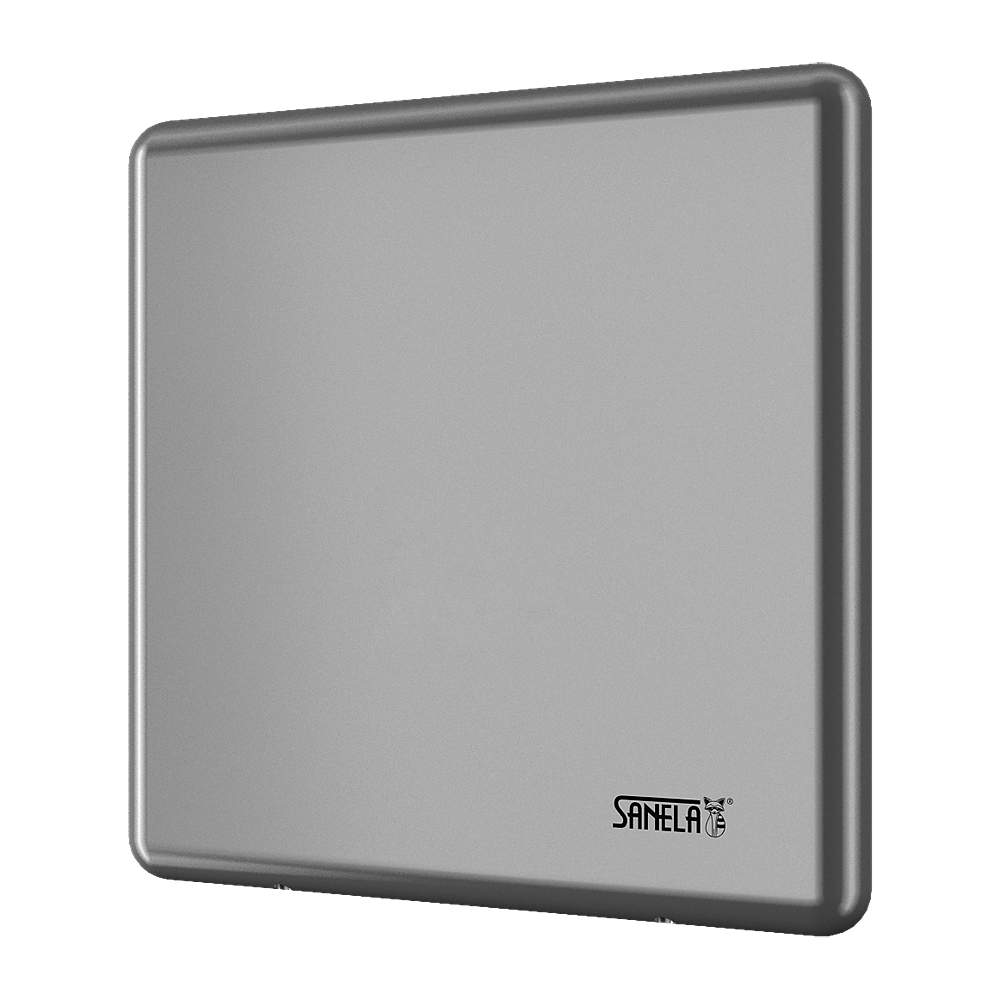

SLP 01ZX
Time-controlled flushing unit, brushed finish, 230 V AC
New product
Characteristics
- includes Bluetooth control (Sanela Control app available for download)
- vandal-proof
- programmable time-controlled flushing unit for urinal troughs SLPN 02(Z) - 05(Z)
- parameters adjustment by Bluetooth application Sanela control
- the 7-day programmable time setting allows the selection of individual days or the entire week according to operational requirements
- the 24-hour daily time profile is used to define a specific time interval for activating the flush during the day
- adjustable flushing interval 00:01 - 99:59 h
- adjustable flushing time 0,5s - 15,5s
- after switch on the power supply 230 V AC, SLP 01Z starts to flush in adjusted interva
- brushed finish
- Order number: 11011
- EAN: 8591385110115
I am interested in more information:
Supply specification
SLP 01ZX - Supply No. 11011 - stainless steel cover with electronics including Bluetooth module, stainless steel mounting box with brass screw coupling, power supply, Sanela Control app available for download on the App Store and Google Play
Technical information
| Stainless steel cover dimension: | 170 x 170 x 10 mm |
| Mounting box dimension: | 145 x 155 x 100 mm |
| Operating voltage: | 230 V AC/50 Hz |
| Recommended flow pressure: | 0,15 - 0,6 MPa |
| Rate of flow: | 70 l/min. by the pressure 0,15 MPa (inf. data) |
| Water inlet: | Ø min. 32 mm (PN 16) , male thread G 1“ |
| Water outlet: | male thread G 1“ |
Downloads
- Catalogue list (169.65 kB)
