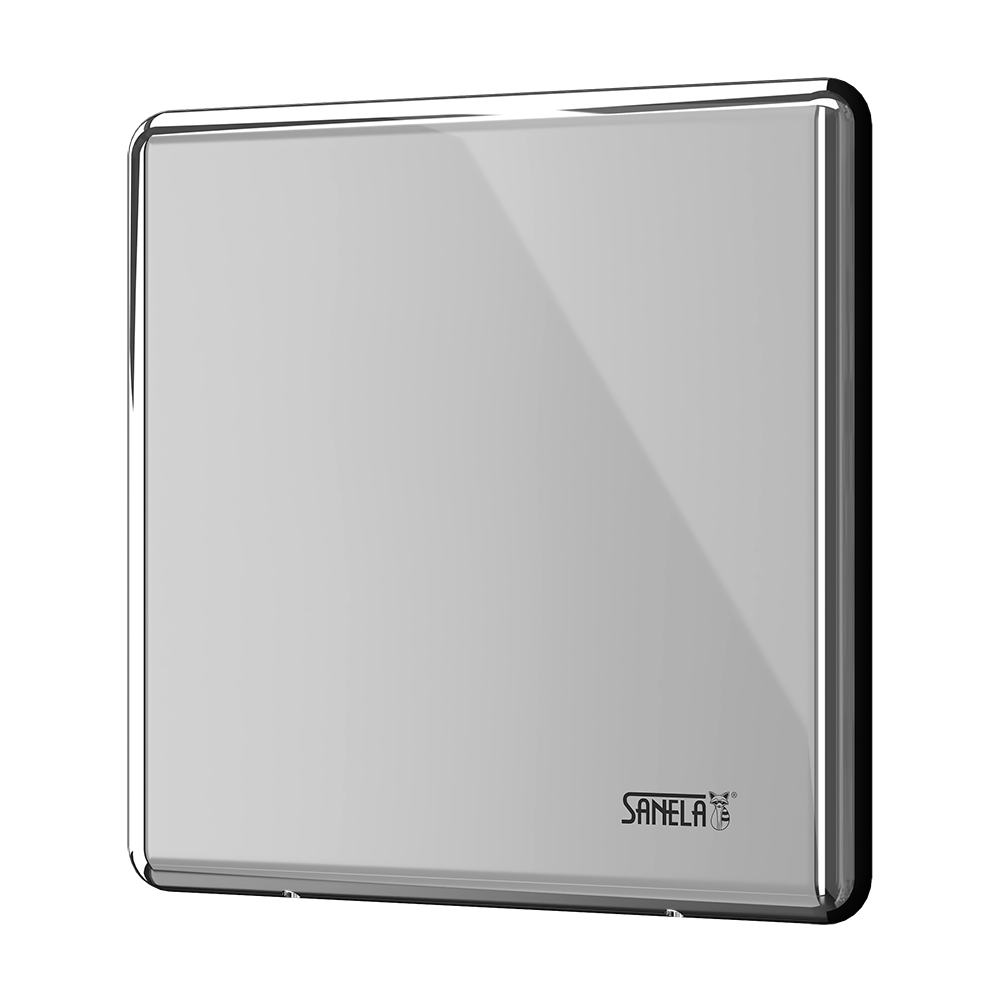

SLP 01Z
Time-controlled flushing unit, 230 V AC
Characteristics
- vandal-proof
- time-controlled flushing unit for urinal troughs SLPN 02(Z) - 05(Z)
- adjustable flushing time 0,5 - 15,5 s, standard 5 s
- parameters adjustment by remote control SLD 04
- adjustable flushing interval 10 min - 3 days, standard 1 h
- after switch on the power supply 230 V AC, SLP 01Z starts to flush in adjusted interval
- Order number: 01011
I am interested in more information:
Supply specification
SLP 01Z - Supply No. 01011 stainless steel cover with electronics, stainless steel mounting box with brass screw coupling, power supply, remote control SLD 04
Technical information
| Flushing unit: | without urinal |
| Power supply: | 230V AC |
| Other: | time-controlled |
| Stainless steel cover dimension: | 170 x 170 x 10 mm |
| Mounting box dimension: | 145 x 155 x 100 mm |
| Operating voltage: | 230 V AC/50 Hz |
| Recommended flow pressure: | 0,15 - 0,6 MPa |
| Rate of flow: | 70 l/min. by the pressure 0,15 MPa (inf. data) |
| Water inlet: | Ø min. 32 mm (PN 16) , male thread G 1“ |
| Water outlet: | male thread G 1“ |
Downloads
- Mounting instructions (785.02 kB)
- Catalogue list (218.13 kB)
- 2D Drawing (299.37 kB)
