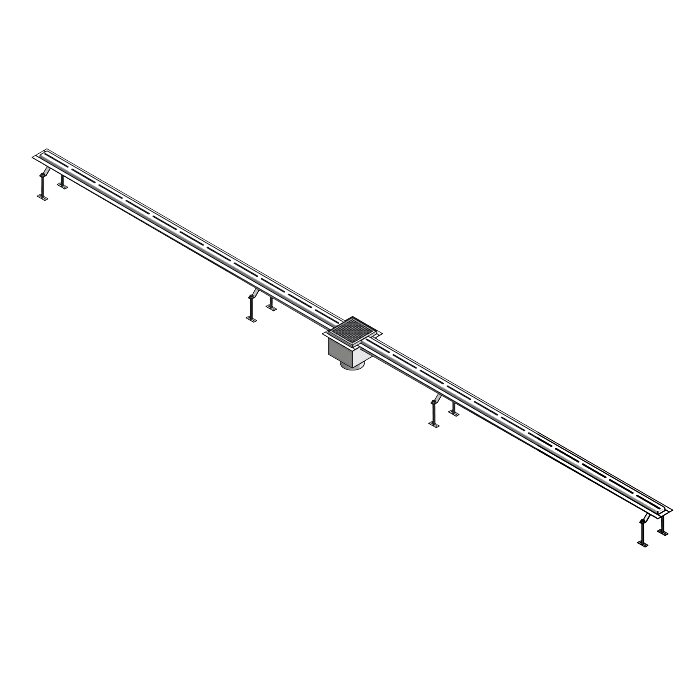

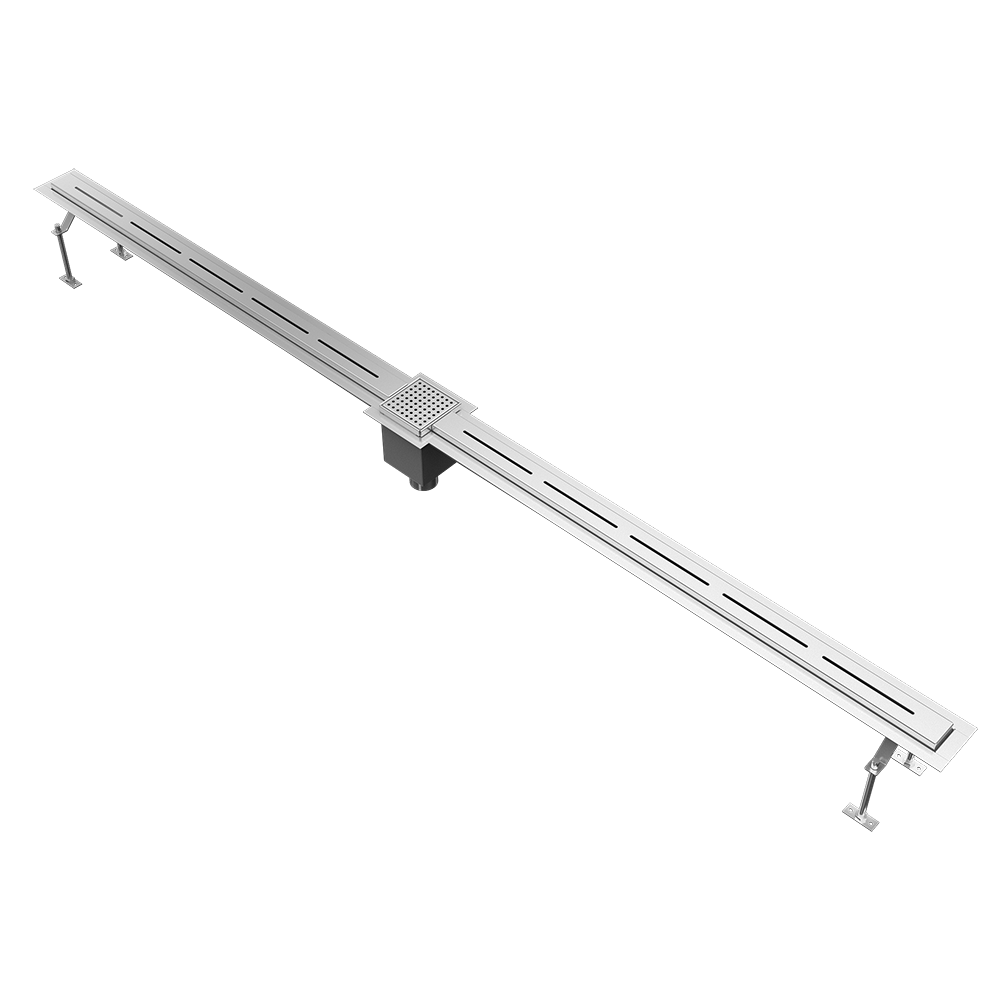

SLKN 01
Stainless steel floor drain trough for swimming pools, length 2 m, AISI 304
Characteristics
DRAIN
- collar serves for a tight and reliable connection to hydro-isolation
- collar with the frame sealed up against the moisture
- mounting legs (for better seating of the drain to the floor)
- bond screw for connection with bonding conductor
- depression of the drain 1 cm on 1 m
- end strip is not included
- length 2000 mm
- different lengths could be made to order (max. 2400 mm)
- material AISI - 304, AISI - 316L
WASTE OUTLET
- easy removable and cleanable stainless steel waste outlet with a stink trap
- max. one water outlet in 4 meters long drain
- Ø 50 mm, rate of flow 48 l/min
- different dimensions of waste could be made to order
- number of waste could be made to order
GRID
- dimensions of the slit 6 x 50 mm (width x length), safe for children
- material AISI - 304, AISI - 316L
- brushed finish
- high polished finish could be made to order
- Order number: 69010
I am interested in more information:
Supply specification
SLKN 01 - Supply No. 69010 - drain (2 m, AISI - 304), waste outlet with a stink trap, grid, mounting legs, waterproofing tape
Technical information
| Installation: | in the open space |
| Type: | slotted |
Downloads
- Mounting instructions (1.43 MB)
- Catalogue list (140.74 kB)
- 2D Drawing (765.23 kB)
