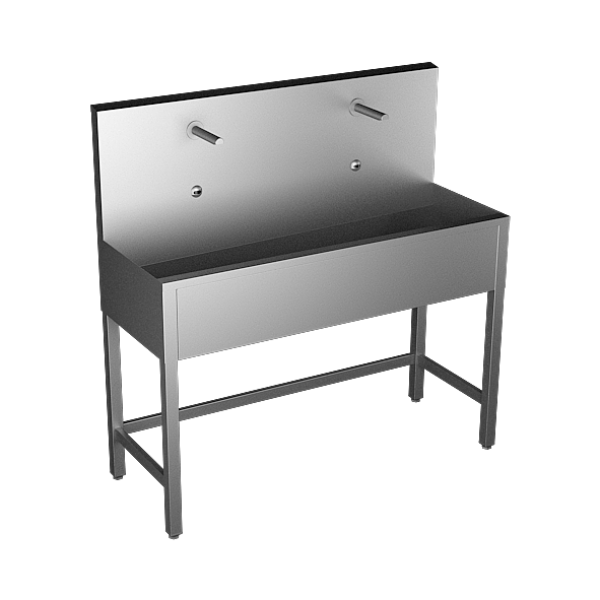

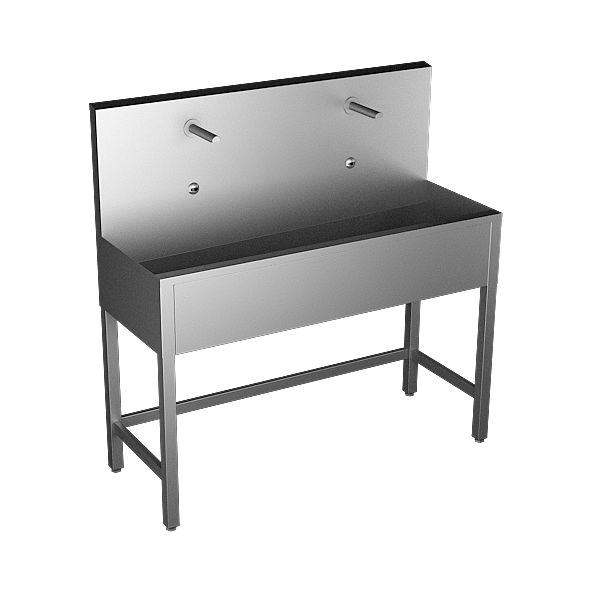

SLUN 50ET

Stainless steel trough with 2 integrated electronics, thermostatic valve, length 1250 mm, 24V DC

Characteristics

  • stainless steel floor standing mangers with integrated electronics
  • SLUN 50E, ET - lenght 1250 mm (2 pcs. of electronics)
  • SLUN 51E, ET - lenght 1900 mm (3 pcs. of electronics)
  • SLUN 52E, ET - lenght 2500 mm (4 pcs. of electronics)
  • SLUN 53E, ET - lenght 3000 mm (5 pcs. of electronics)
  • different lenghts could be made to order
  • material CrNi (AISI-304)
  • water temperature regulated by angle valves (models with E index) or by thermostatic valve (models with ET index)
  • brushed finish
Order number 93503
Code SLUN 50ET

Supply specification

SLUN 50ET - supply No. 93503 - stainless steel automatic washing manger, spouts, electromagnetic valves, connecting hoses, angle valve with a filter and check valve (2 pcs.), siphon, thermostatic valve

Technical information

Operating voltage: 24V DC external
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 1/2“
Water temperature regulation: by thermostic mixer
