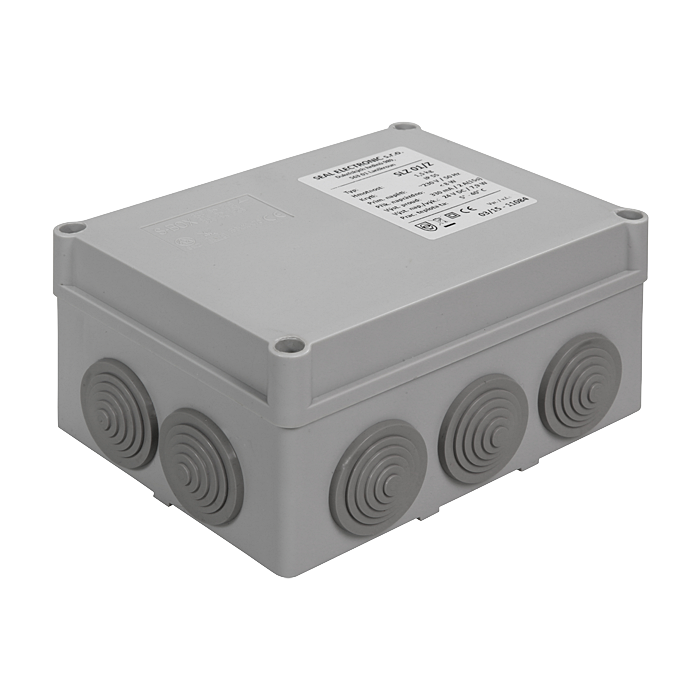

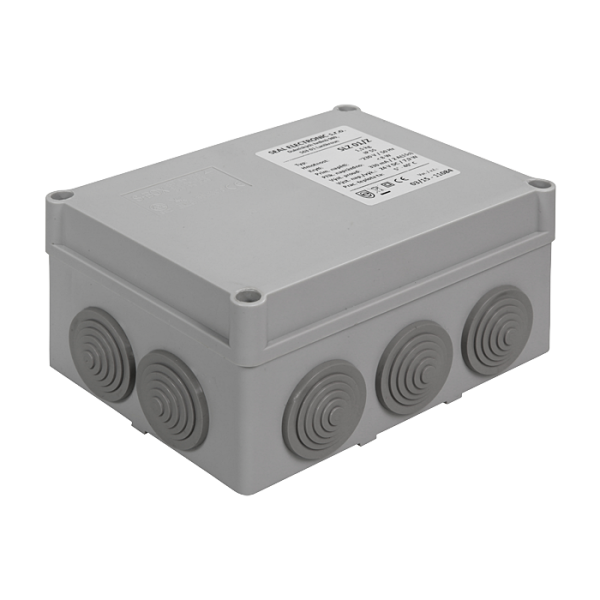

SLZ 01Z

External power supply 230/24V DC

Characteristics

  • external power supplies are destined only for a supply of automatic sanitary electronics´ products SANELA (with the exception of battery operated products and products with an integrated power supply)
Order number 05011
Code SLZ 01Z

Supply specification

SLZ 01Z - supply No. 05011 - external power supply 230/24V DC

Technical information

Dimensions: cca 170 x 130 x 80 mm
Input voltage: 230V AC/50Hz
Output voltage: stabilized 24V DC
IP code: IP 55
Automatic washbasin taps and shower controls supply: 9 valves max.
Automatic urinal flushing units supply: 9 valves max.
Automatic toilet flushing unit supply: 9 valves max.
Automatic toilet flushing unit SLW 02xx: max. 2 magnets
