SLUN 50EA

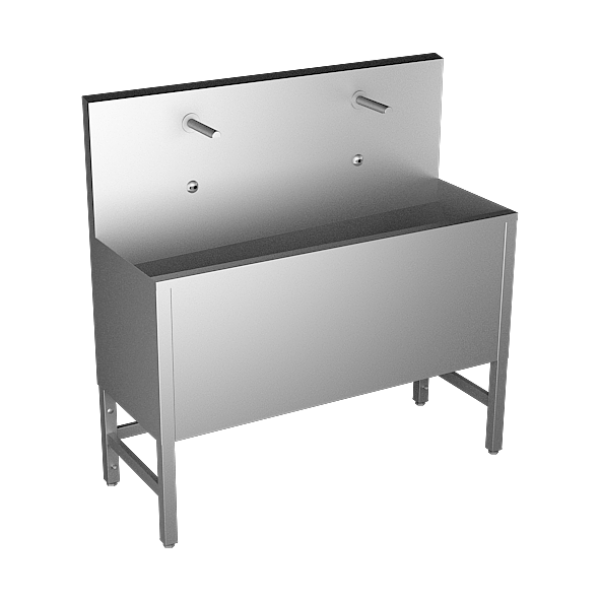

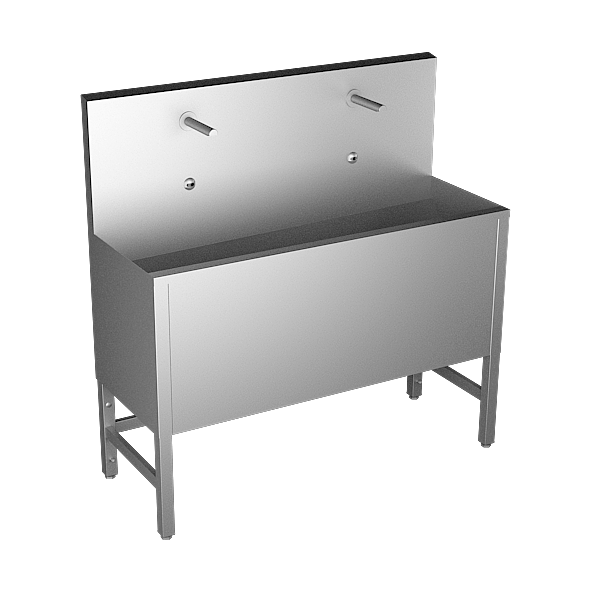

Vandal-proof stainless steel trough with 2 integrated electronics, length 1250 mm, 24 V DC

Characteristics

  • economical aerator, rate of flow 6 l/min
  • hygienic flush
  • vandal-proof
  • suitable for prison
  • SLUN 50EA is destined for cold and hot water, temperature is regulated by angle valves
  • with a complete apron
  • stainless steel washing trough with integrated electronics
  • vandal-proof stainless steel spouts and sensing heads
  • water is flowing as long as hands are in the active range
  • water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 - 7,75 s)
  • function of automatic water stop after 5 minut of continuous flow
  • START/STOP program
  • parameter adjustment using by the remote control SLD 03
  • different lengths could be made to order
  • material AISI - 304
  • could be made to order from stainless steel AISI - 316L
  • brushed finish
  • Order number: 93502
I am interested in more information:

Supply specification

SLUN 50EA - Supply No. 93502 - stainless steel washing trough with electronics (2 pcs.), spout (2 pcs.), electromagnetic valve (2 pcs.), connecting hoses, angle valve with filter (2 pcs.), siphon

Technical information

Temperature regulation: for cold and hot water
Installation: on the legs
Category: trough
Control: infra-red
Operating voltage: 24 V DC
Active range: 0,23 - 0,31 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 1/2“
