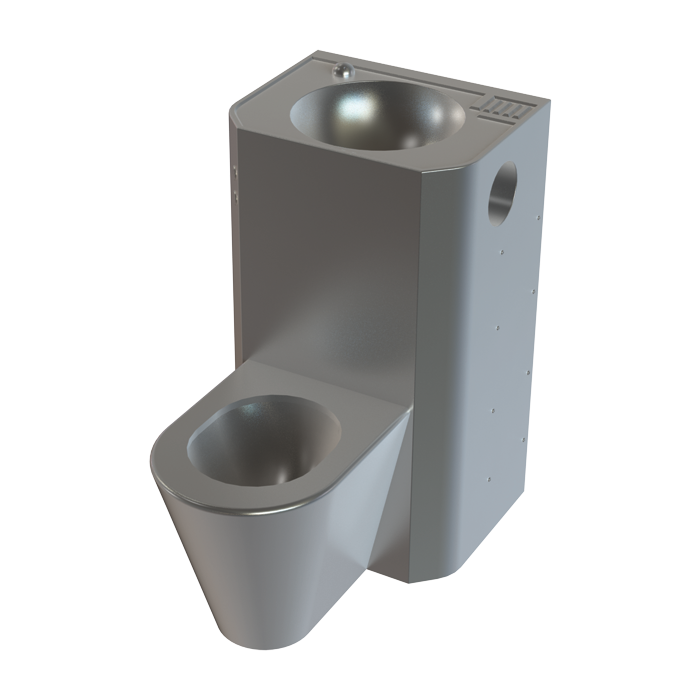

SLWN 38ZP
Vandal-proof combination unit with integrated piezo electronics, hanging toilet, service hatch, brushed, 24 V DC
We are sorry, but this product is no longer in our offer. Please, try to choose another from our offer
Characteristics
- vandal-proof
- suitable for prison
- piezo combination with toilet, washbasin, washbasin spout and a toilet paper hole
- piezo button for washbasin spout
- piezo button for toilet flushing
- SLWN 38ZP - hanging toilet
- filled with expanded polyurethane (to avoid dents and typical metal noise)
- rear assembling through the service hatch
- water flows (or flushing the toilet) after soft push of the piezo button
- water stops flowing after adjustable flowing time (by washbasin can be set in 2 - 62 s, standard 10 s and by toilet can be set in 0,5 – 15,5 s, standard 8 s)
- water could be stopped by follow-up soft push of piezo button
- automatic hygiene flush after each eight flush or 24 hours non using of toilet
- parameters adjustment by remote control SLD 04
- material AISI - 304
- brushed finish
- Order number: 94385
I am interested in more information:
Supply specification
SLWN 38ZP - Supply No. 94385 - stainless steel combination unit with toilet and washbasin, piezo electronics (2 pcs.), washbasin spout, mounting set
Technical information
| Installation: | from the service room (M10 screws) |
| Combi unit type: | straight |
| Combi unit type: | with piezo |
| Toilet type: | hanging |
| Category: | combination unit |
| Operating voltage: | 24 V DC |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 70 l/min. by the pressure 0,15 MPa (inf. data) |
| Water inlet: | Ø min. 32 mm (PN 16) male thread G 1″ |
Downloads
- 2D Drawing (285.32 kB)
