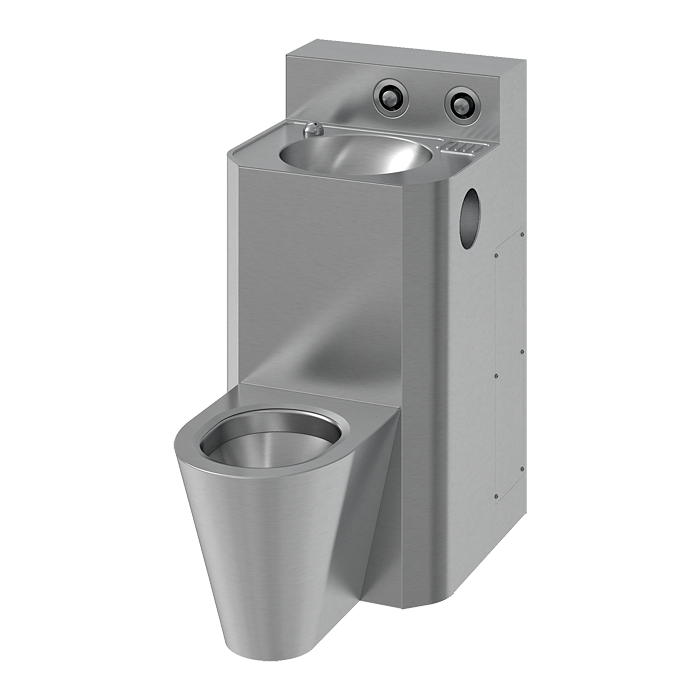

SLWN 38Z
Vandal-proof combination unit, hanging toilet, service hatch
We are sorry, but this product is no longer in our offer. Please, try to choose another from our offer
Characteristics
- vandal-proof
- suitable for prison
- combination unit with toilet, washbasin, washbasin spout and a toilet paper hole
- push button for washbasin spout
- push button for flushing toilet
- SLWN 38Z - hanging toilet
- filled with expanded polyurethane (to avoid dents and typical metal noise)
- rear assembling through the service hatch
- material AISI - 304
- brushed finish
- Order number: 94384
I am interested in more information:
Supply specification
SLWN 38Z - Supply No. 94384 - stainless steel combination unit with toilet and washbasin, push button (2 pcs.) washbasin spout, mounting set, set for connection
Technical information
| Installation: | from the service room (M10 screws) |
| Combi unit type: | straight |
| Toilet type: | hanging |
| Category: | combination unit |
| Recommended flow pressure: | 0,15 - 0,5 MPa |
| Rate of flow: | 70 l/min. by the pressure 0,15 MPa (inf. data) |
| Water inlet: | WC - Ø min. 32 mm (PN 16) male thread G 3/4“ |
| washbasin - male thread G 1/2“ |
Downloads
- Mounting instructions (768.91 kB)
- 2D Drawing (221.47 kB)
