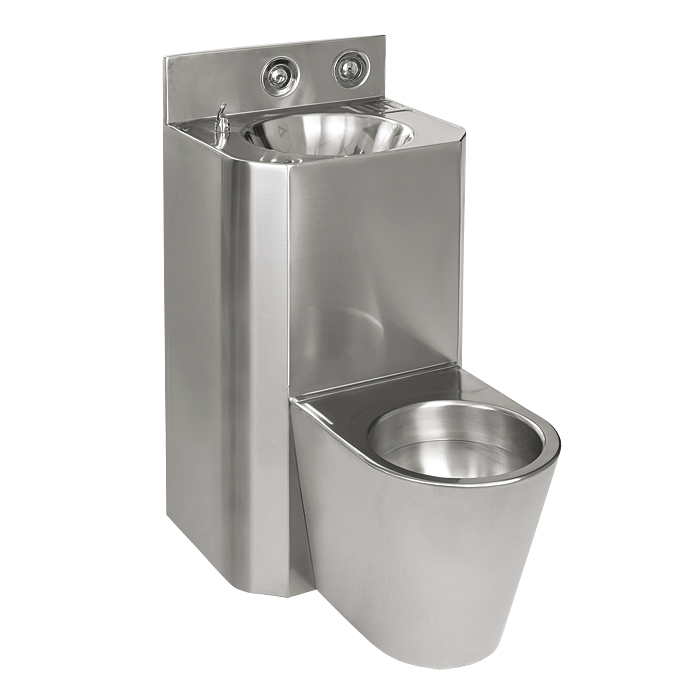

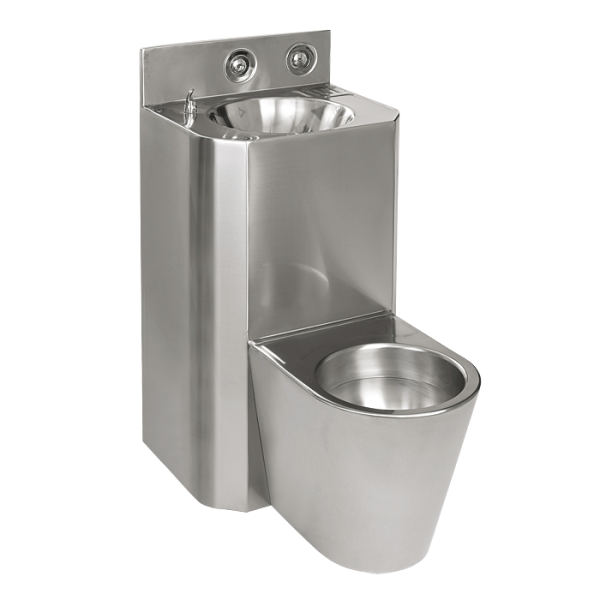

SLWN 28Z
Vandal-proof combination unit, hanging toilet
Characteristics
- vandal-proof
- suitable for prison
- combination unit with toilet, washbasin, washbasin spout and a toilet paper hole
- push button for washbasin spout
- push button for flushing toilet
- SLWN 28Z - hanging toilet
- filled with expanded polyurethane (to avoid dents and typical metal noise)
- rear assembling by screws (M10, length 190 mm) from the service room
- material AISI - 304
- brushed finish
- Order number: 94284
I am interested in more information:
Supply specification
SLWN 28Z - Supply No. 94284 - stainless steel combination unit with toilet and washbasin, push button (2 pcs.), washbasin spout, screws M10 (6 pcs.), set for connection
Technical information
| Installation: | from the service room (M10 screws) |
| Combi unit type: | straight |
| Toilet type: | hanging |
| Category: | combination unit |
| Recommended flow pressure: | 0,15 - 0,5 MPa |
| Rate of flow: | 70 l/min. by the pressure 0,15 MPa (inf. data) |
| Water inlet: | WC - Ø min. 32 mm (PN 16) male thread G 3/4“ |
| washbasin - male thread G 1/2“ |
Downloads
- Mounting instructions (732.52 kB)
- Catalogue list (272.02 kB)
- 2D Drawing (181.99 kB)
