SLW 10NKB

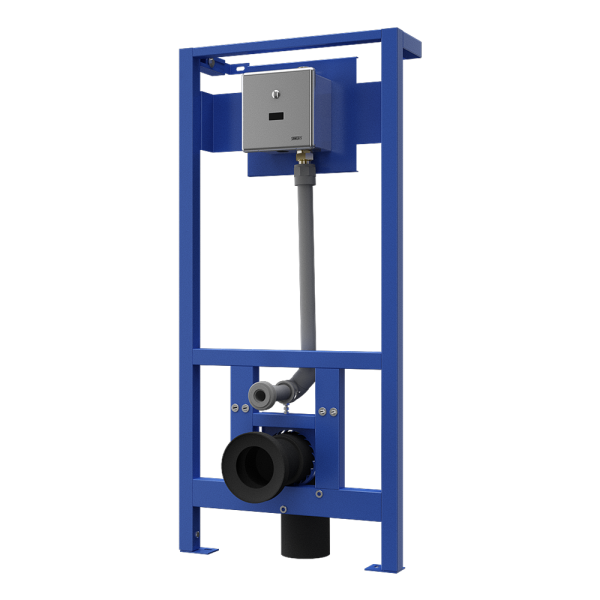

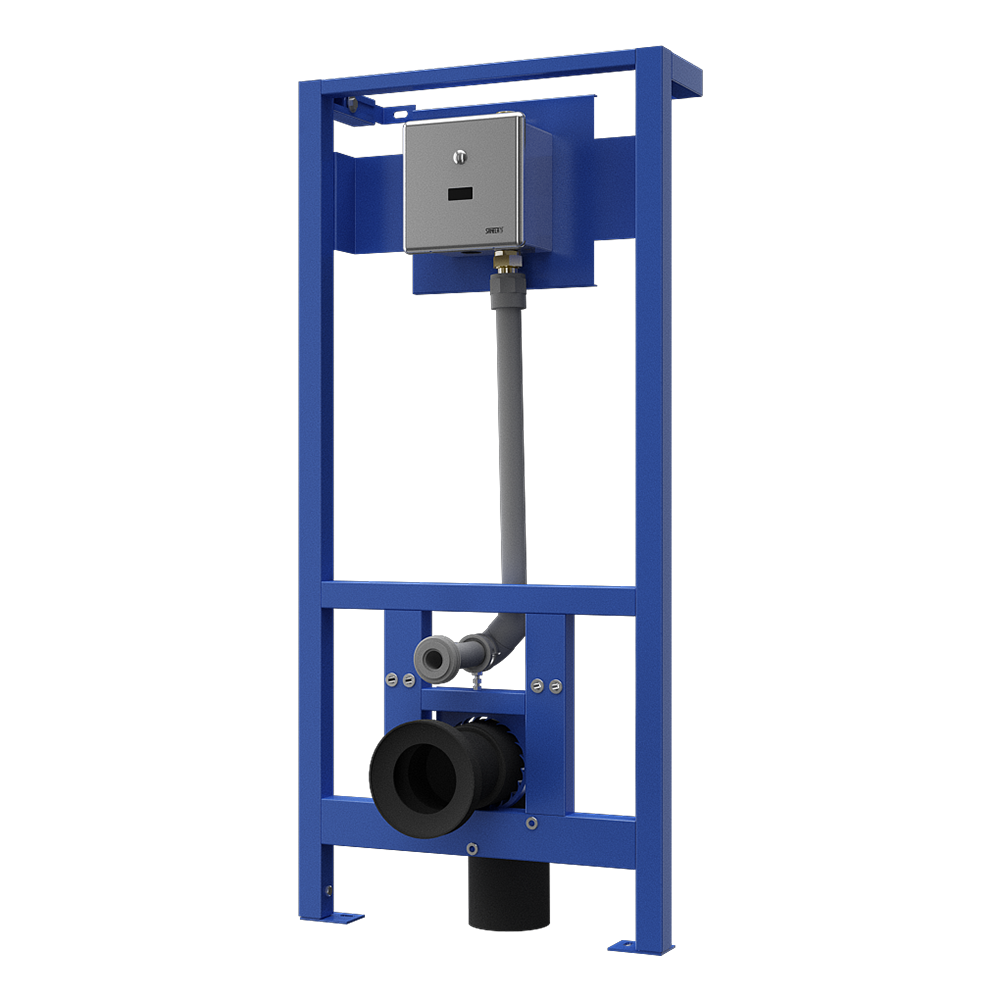

Set of SLW 01NKB and SLR 03, 6 V

Characteristics

  • including pre-installed mounting frame SLR 03
  • is destined for the brick wall
  • five-point system for fixing of stainless steel toilets
  • metal frame construction with surface finishing - blue powder coated
  • mounting screws M10, waste pipe holder with connecting set Ø 50 mm and waste pipe holder with the elbow pipe Ø 110 mm
  • toilet flushing unit for a pressure water from water distribution, isn´t possible to use it for toilet with tank
  • system reacts to the user attendance in active range of the sensor at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 s
  • water flows after the user leaves active range
  • adjustable flushing time from 0,5 to 15,5 s
  • possibility of additional manual flush by push-button (f.e. during the cleaning)
  • automatic hygiene flush after each 8 use of toilet and after 24 hours non-use
  • monitoring of battery capacity (for models with index B)
  • parameters adjustment by remote control SLD 03
  • Order number: 04102

Supply specification

SLW 10NKB - Supply No. 04102 - stainless steel cover with electronics, stainless steel mounting box with brass screw coupling and electromagnetic valve, inlet fitting with a rubber sealing, 4 pcs. AA alkaline batteries 1,5 V 2700 mAh

Technical information

flushing type: for a pressured water
material: stainless steel
power supply: battery operated
control: infra-red
Stainless steel cover dimension: 170 x 170 x 10 mm
Mounting box dimension: 150 x 150 x 100 mm
Mounting frame dimensions: 1120 - 1290 x 510 x 155 - 235 mm
Operating voltage: 6 V
Power input: 3 W
Active range: 0,6 - 0,75 m
Recommended flow pressure: 0,1 - 0,8 MPa
Rate of flow: 60 l/min. (inf. data)
Water inlet: male thread G 1″
Water outlet: inlet fitting with a rubber sealing
