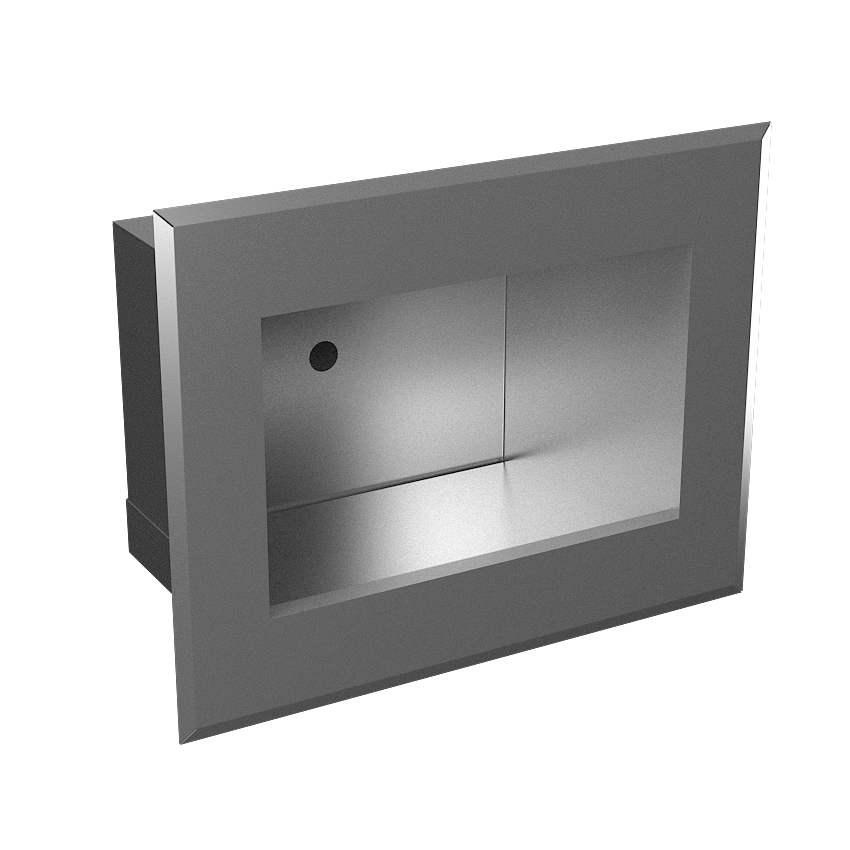

SLUN 76ETB
Vandal-proof stainless steel automatic recessed washbasin, for cold and hot water, with thermostatic valve, 6 V
While stocks last
Characteristics
- economical aerator, rate of flow 6 l/min
- hygienic flush
- vandal-proof
- suitable for prison
- stainless steel recessed washbasin with integrated automatic water outlet
- SLUN 76ET - is destined for cold and hot water, temperature is regulated by thermostatic valve
- rear assembling by screws (M10, length 190 mm) from the service room
- water is flowing as long as hands are in the active range
- water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 - 7,75 s)
- function of automatic water stop after 5 minut of continuous flow
- monitoring of battery capacity
- START/STOP program
- parameter adjustment using by the remote control SLD 03
- material AISI - 304
- brushed finish
- Order number: 93764
I am interested in more information:
Supply specification
SLUN 76ETB - Supply No. 93764 - stainless steel washbasin with integrated water outlet with electronics, electromagnetic valve (1 pc.), thermostatic valve (1 pc.), connecting hoses, angle valve with filter and check valve (2 pcs.), siphon, mounting set, 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh
Technical information
| Temperature regulation: | with thermostat |
| Power supply: | battery operated |
| Installation: | recessed into the wall |
| Category: | washbasin |
| Control: | infra-red |
| Operating voltage: | 6 V |
| Battery life: | 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh (approx. 2 years (100 uses per day) |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 12 l/min. (inf. data) |
| Water inlet: | male thread G 1/2“ |
Downloads
- Catalogue list (207.55 kB)
- 2D Drawing (284.02 kB)
