SLUN 76EB

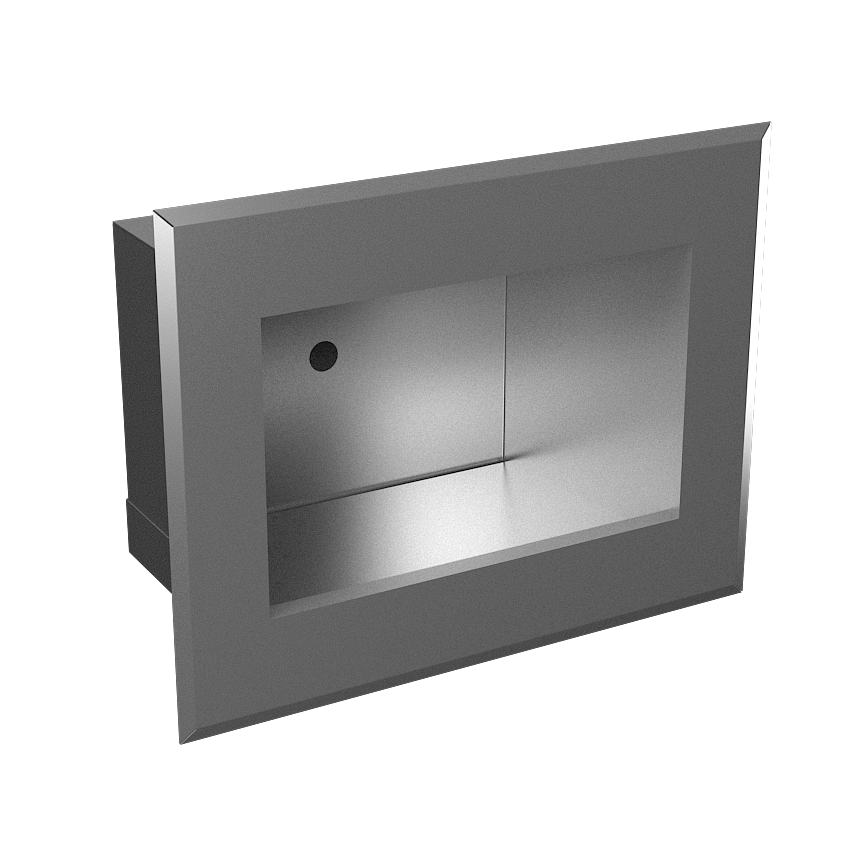

Vandal-proof stainless steel automatic recessed washbasin, for cold and hot water, 6 V

Vandal-proof stainless steel automatic recessed washbasin, for cold and hot water, 6 V

While stocks last

Characteristics

  • economical aerator, rate of flow 6 l/min
  • hygienic flush
  • vandal-proof
  • suitable for prison
  • stainless steel recessed washbasin with integrated automatic water outlet
  • SLUN 76E - is destined for cold and hot water, temperature is regulated by angle valves
  • rear assembling by screws (M10, length 190 mm) from the service room
  • water is flowing as long as hands are in the active range
  • water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 - 7,75 s)
  • function of automatic water stop after 5 minut of continuous flow
  • monitoring of battery capacity
  • START/STOP program
  • parameter adjustment using by the remote control SLD 03
  • material AISI - 304
  • brushed finish
  • Order number: 93762
I am interested in more information:

Supply specification

SLUN 76EB - Supply No. 93762 - stainless steel washbasin with integrated water outlet and electronics, electromagnetic valve (1 pc.), Y-piece, connecting hoses, angle valve with filter and check valve (2 pcs.), siphon, mounting set, 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh

Technical information

Temperature regulation: for cold and hot water
Power supply: battery operated
Installation: recessed into the wall
Category: washbasin
Control: infra-red
Operating voltage: 6 V
Battery life: 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh (approx. 2 years (100 uses per day)
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 1/2“
