SLUN 23EB

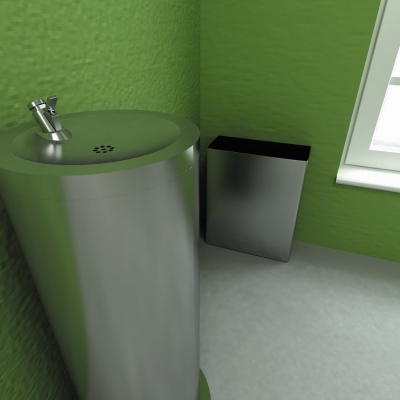

Stainless steel floor mounted automatic drinking fountain, 6 V

Characteristics

  • hygienic flush
  • stainless steel floor standing drinking fountain with automatic infra-red drinking spout
  • mounting to the floor
  • system reacts to the user‘s face in front of the sensor
  • water stops after user leaving the active range of the sensor
  • function of automatic water stop after 5 minut of continuous flow
  • monitoring of battery capacity
  • START/STOP program
  • parameter adjustment using by the remote control SLD 03
  • water flow regulation on drinking spout
  • filled with expanded polyurethane (to avoid dents and typical metal noise)
  • material AISI - 304
  • inner bowl high polished finish, sheating brushed finish
  • Order number: 93232

Supply specification

SLUN 23EB - Supply No. 93232 - stainless steel drinking fountain, drinking spout with electronics, electromagnetic valve (1 pc.), angle valve with filter and check valve (1 pc.), connecting hoses, siphon, 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh

Technical information

installation: in the open space
installation: standing
control: infra-red
Operating voltage: 6 V
Battery life: 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh (approx. 2 years (100 uses per day)
Active range: 0,23 - 0,31 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 0,4 l/min. (inf. data)
Water inlet: male thread G 1/2"
