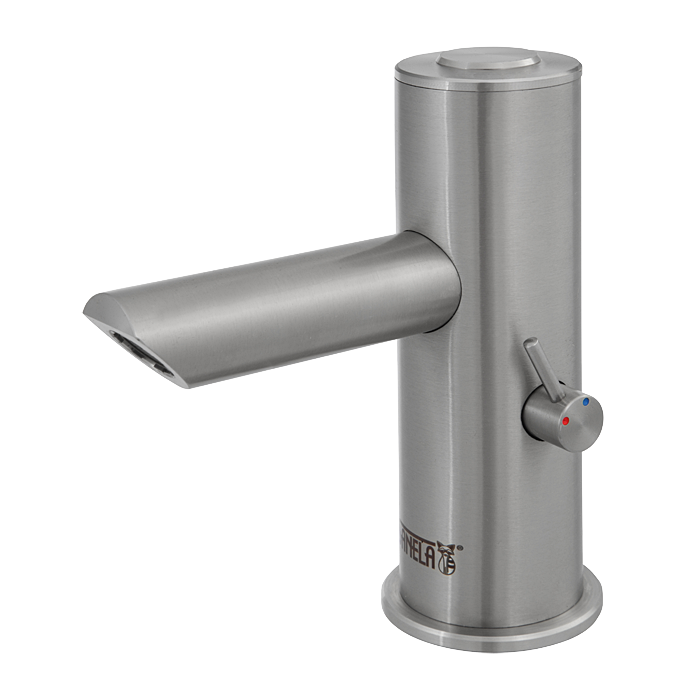

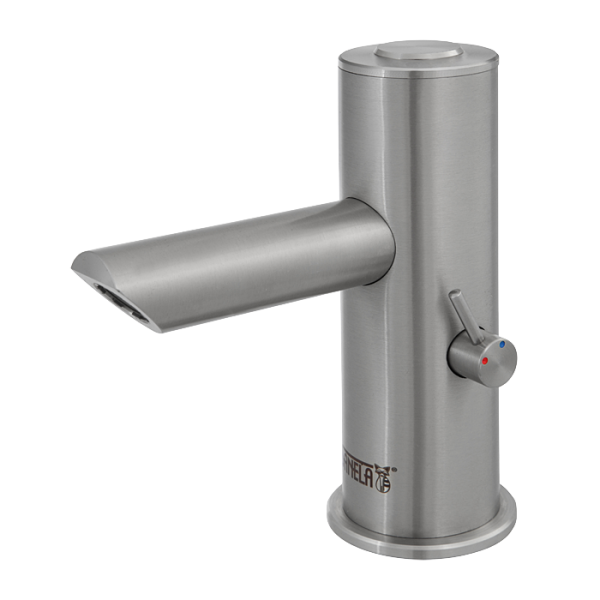

SLU 92NPDB
Piezo stainless steel washbasin tap with mixer, longer outlet arm, 6 V
Characteristics
- economical aerator, rate of flow 6 l/min
- hygienic flush
- vandal-proof
- lead free
- whole stainless steel
- electromagnetic valve is in the tap body
- SLU 92NP is destined for cold and hot water, temperature is regulated by mixer
- index „D“ - longer spout
- water flows after soft push of the piezo button
- water stops flowing after adjustable flowing time (can be set in 2 - 62 s), standard 10 s
- monitoring of battery capacity
- water could be stopped by follow-up soft push of piezo button
- parameter adjustment using by the remote control SLD 04
- Order number: 66924
I am interested in more information:
Supply specification
SLU 92NPDB - obj. č. 66924 - faucet with mixer and piezo electronics and electromagnetic valve, connecting hoses, filter with check valve (2 pcs.), 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh
Technical information
| Material: | stainless steel |
| Temperature regulation: | with mixer |
| Power supply: | battery operated |
| Control: | piezo |
| Operating voltage: | 6 V |
| Battery life: | 4 pcs. AA alkaline batteries AA, 1,5 V, 2700 mAh (approx. 2 years (100 uses per day) |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 6 l/min. (inf. data) |
| Water inlet: | male thread G 1/2“ |
Downloads
- Mounting instructions (1.81 MB)
- Catalogue list (341.36 kB)
- 2D Drawing (93.83 kB)
Accessories
